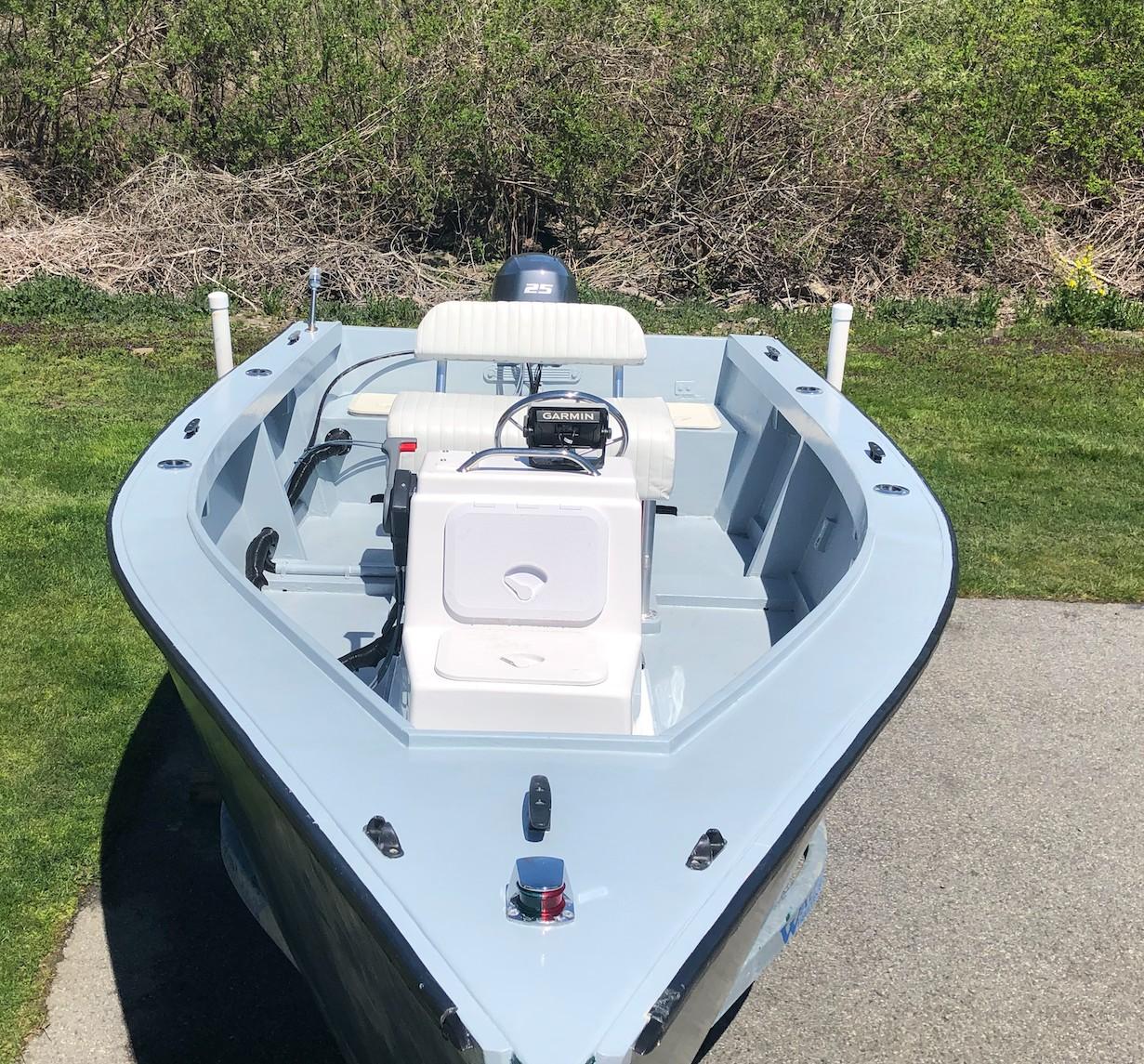

2017 Custom Old Wharf Dory CC Skiff

Rugged flat-bottom work or pleasure skiff, suitable for any commercial use or boater seeking a low-maintenance but reliable boat. This skiff has been over-built, fiber-glassed  and personalized by her builder. The 2017 Yamaha 25 four-stroke motor will push her over 18 knots with ease. Her dry weight is just over 1200 lbs and is easily towed with her new galvanized bunk trailer. The boat is DEM approved, meets all USCG requirements, has a Hull ID and is RI State titled.

Can be seen by appointment in Middletown, RI.

Design:

• The "Lumberyard skiff" or "LYS" design comes from Walter Baron, owner of the Old Wharf Dory Company in Wellfleet, Massachusetts  These  16-and 20-foot boats (based on the Brockway skiffs) are simple, rugged and easy to build. The 16-footer requires just three sheets of 1/2" and 4 sheets of 3/4" 8-foot meranti plywood, and Baron says he can finish a bare hull in about 40 hours. A tricked out 16-footer would come equipped with flotation, a short foredeck, side decks, interior coaming, a center console, cedar floorboards, and a fiberglass-sheathed exterior hull. The skiff would run about $9,000 without the recommended 25to 30-hp outboard.
• http://www.oldwharf.com/new-blog/2015/6/23/simple-skiffs
• Flat-bottom skiff, built 16' long, 7' beam and 2' raised gunnels on both sides

Construction:

•  Built with all marine plywood, ¾” plywood bottom and ½ marine plywood on the sides.  The joints on the bottom of the boat were covered with 4 oz fiberglass tape and epoxied and sanded.
• All edges were epoxy sealed and all plywood was epoxy soaked prior to glassing over (entire hull) with 6 oz fiberglass cloth and 4 coats of finish epoxy on the exterior of the hull, rail topsides.  The interior was epoxy soaked and coated with 3 coats of epoxy finish.
• 2" thick transom
• All fasteners are stainless steel screws
• Poured foam flotation in bow and transom
• Thru-bolted loop eyes into the hull are G10 FR4 back boarded
• The framing is #1 Fir (Broden Mill Works), and all the joints were epoxy soaked and coated prior to installing. All epoxy and paint on the boat are Total Boat products from Jamestown Distributors in Bristol RI.

Color Layout: (Rolled and tipped, all Total Boat products)

Hull: Jade Green, (4) coats

Inside gunnels: Kingston Grey, (3) coats

Deck flooring: Kingston Grey non-skid, (2) coats

• Stainless toe eyes, (1) on bow, (2) on port and starboard side of the transom
• (5) Black plastic cleats with line chocks on the bow
• (4) S/S rod holders built into gunnels
• Black rubber rub rails

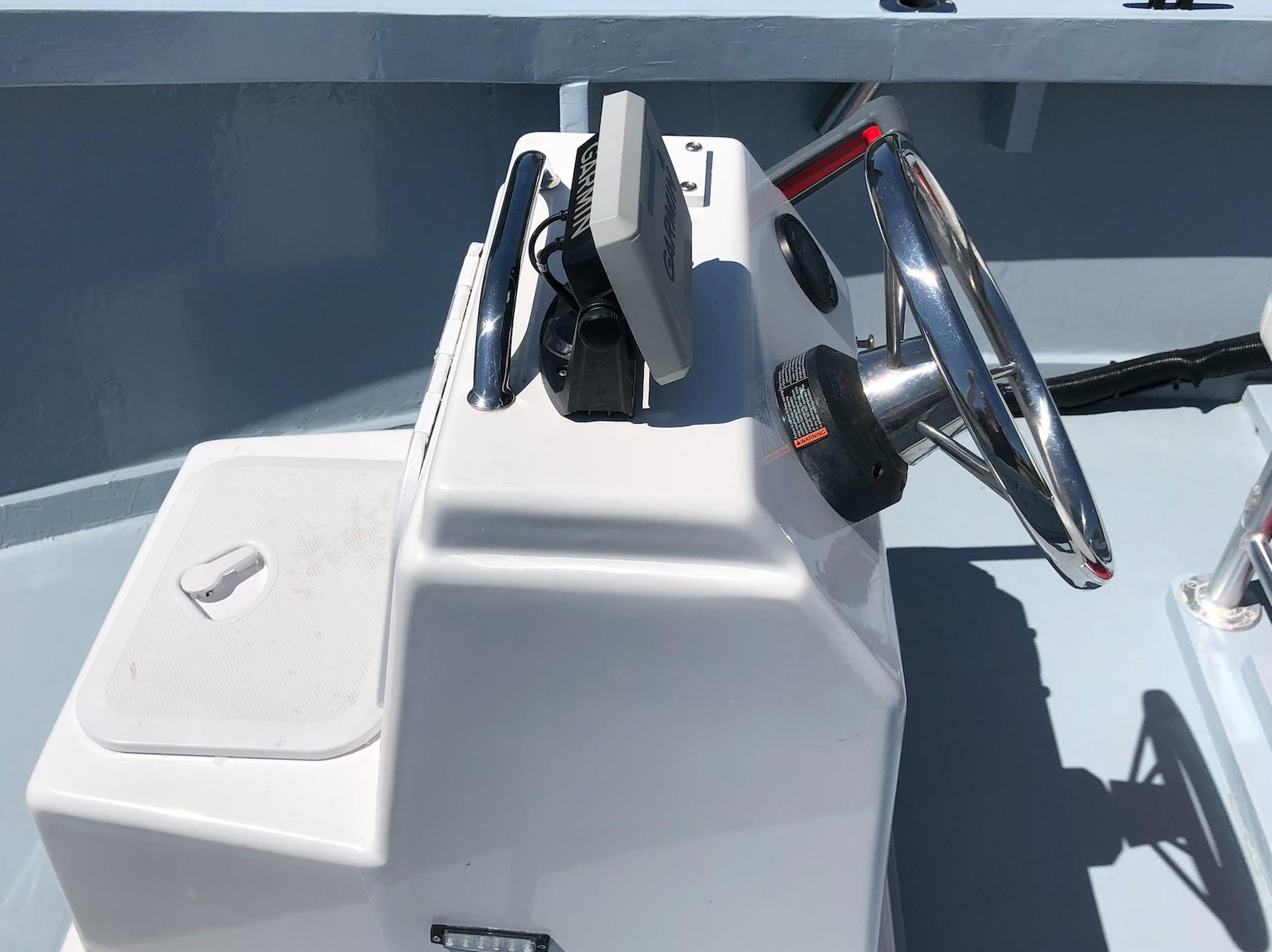

• 15" S/S console mounted wheel
• S/S ladder mounting bracket on starboard side of the transom
• S/S ladder with rubber steps that brackets to the inside of the port gunnel

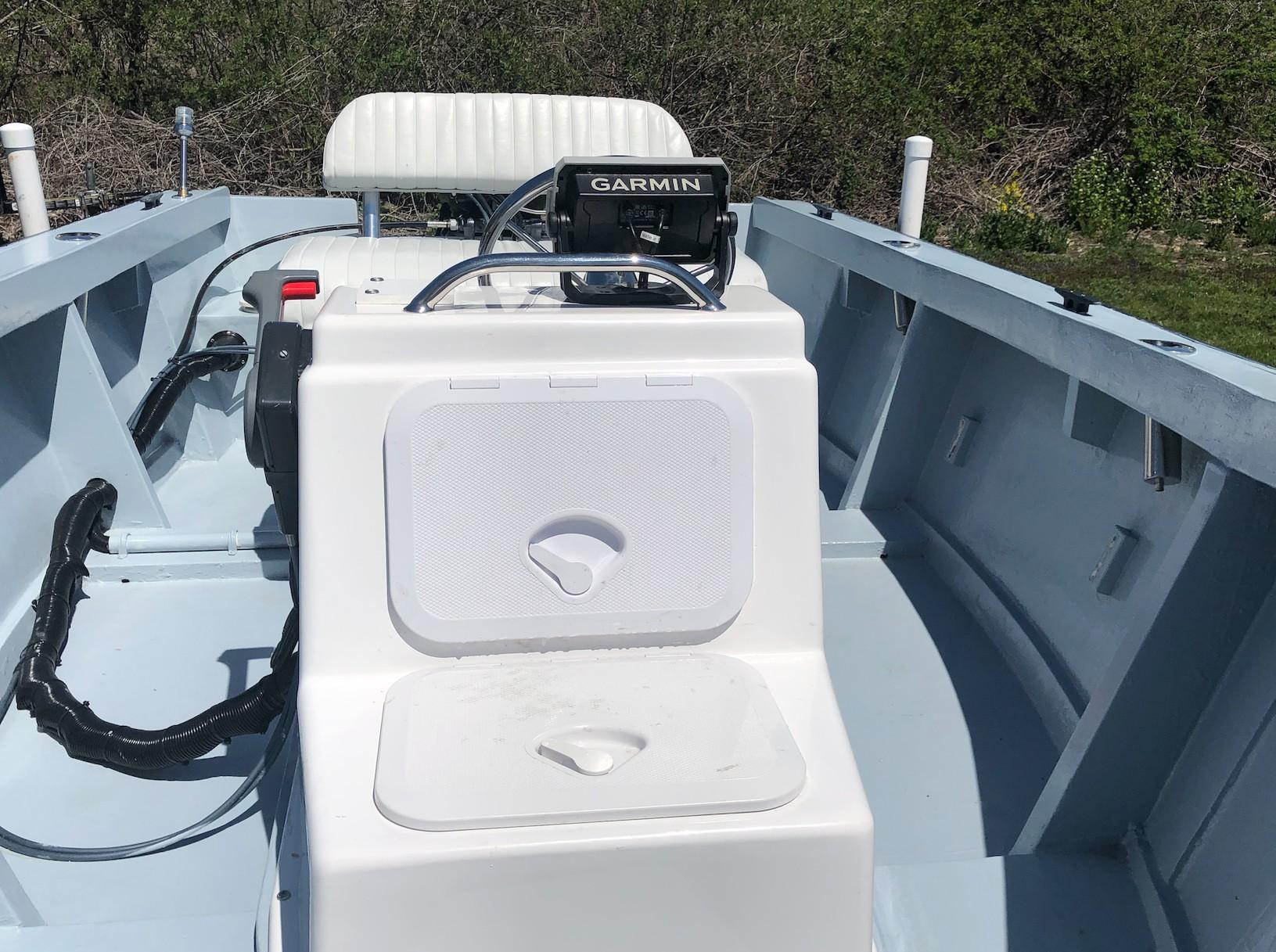

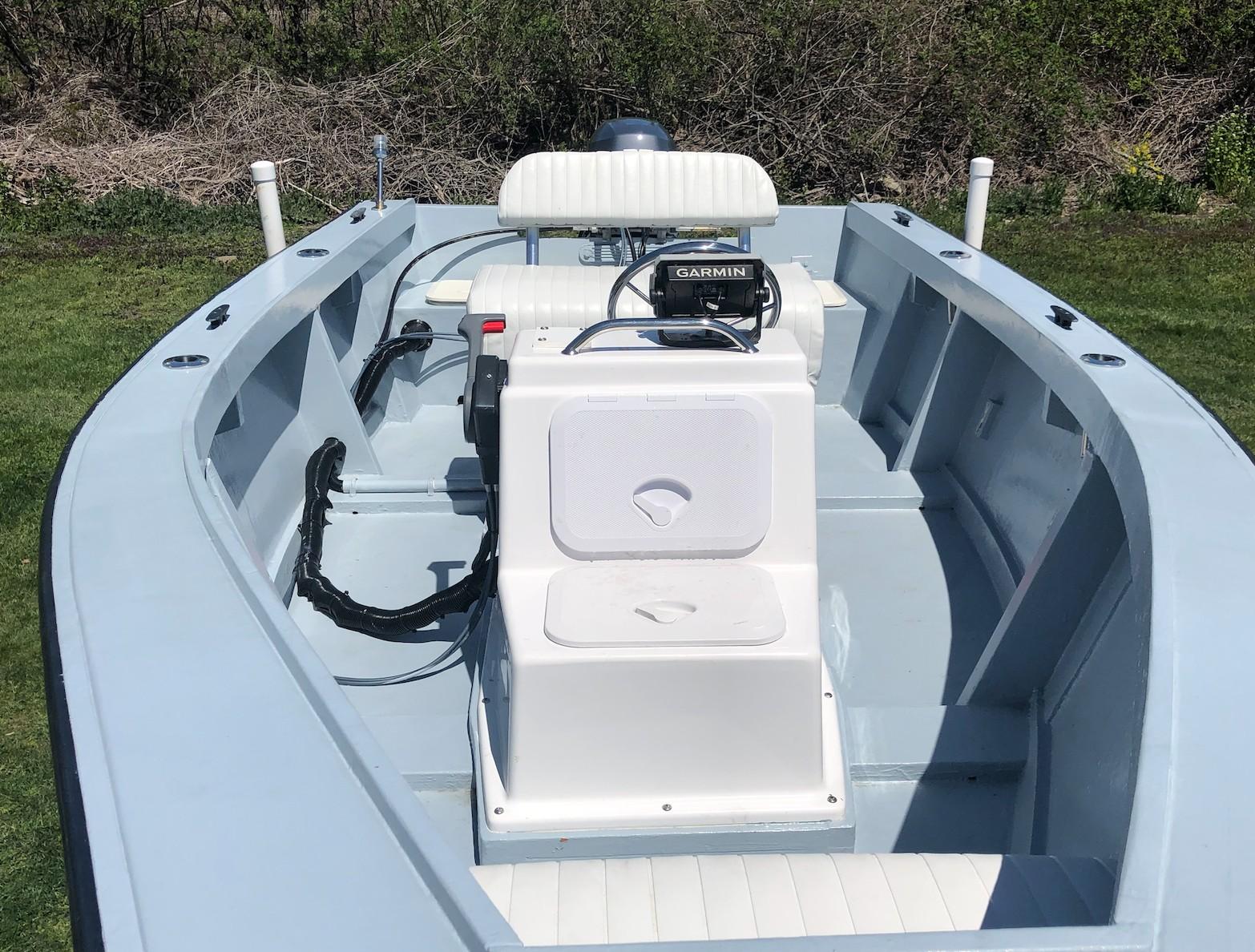

• Rough water products FRP custom console w/ forward-facing hatch

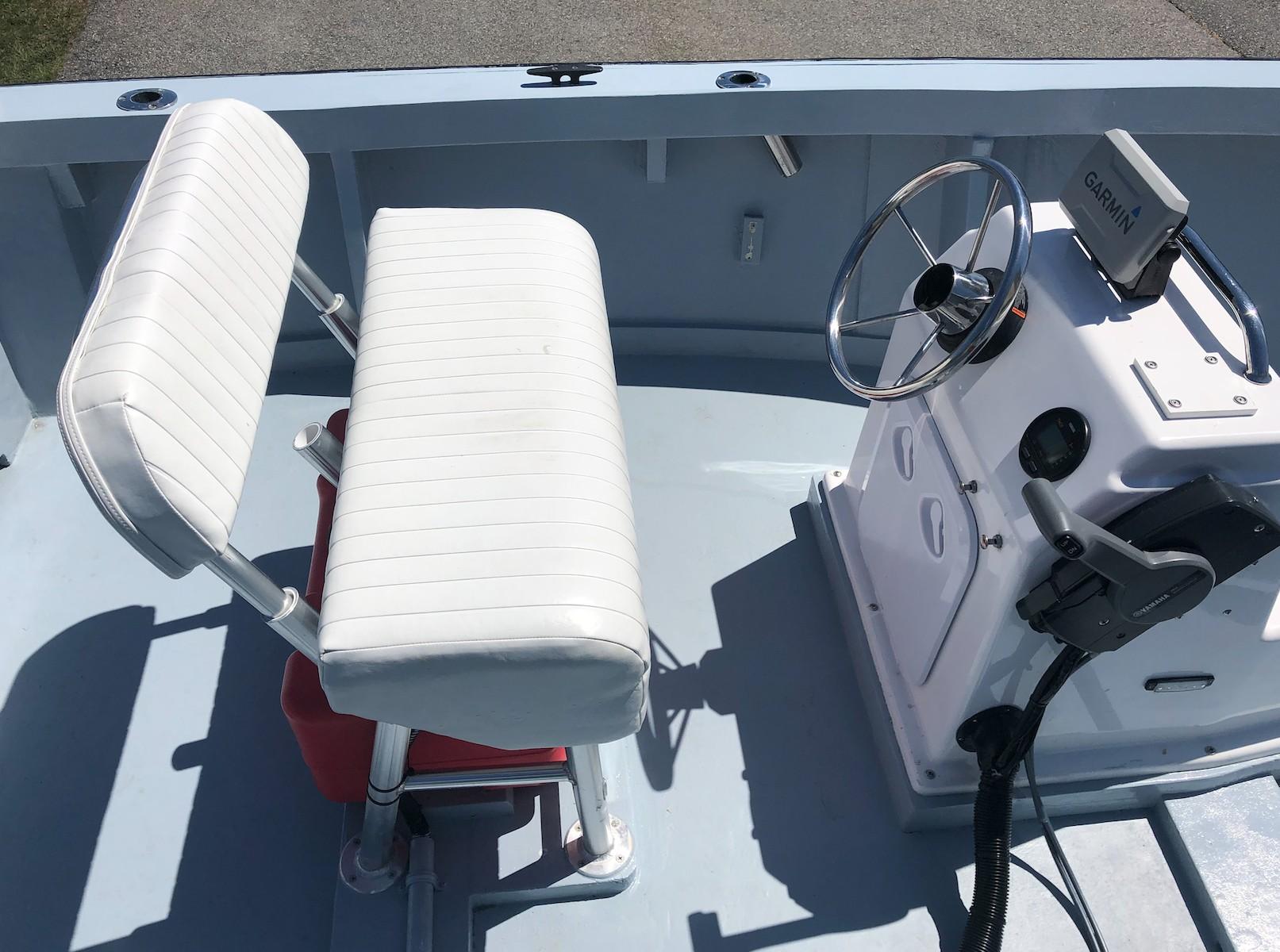

• Rough water products helm seat (cushioned) with removable back rest

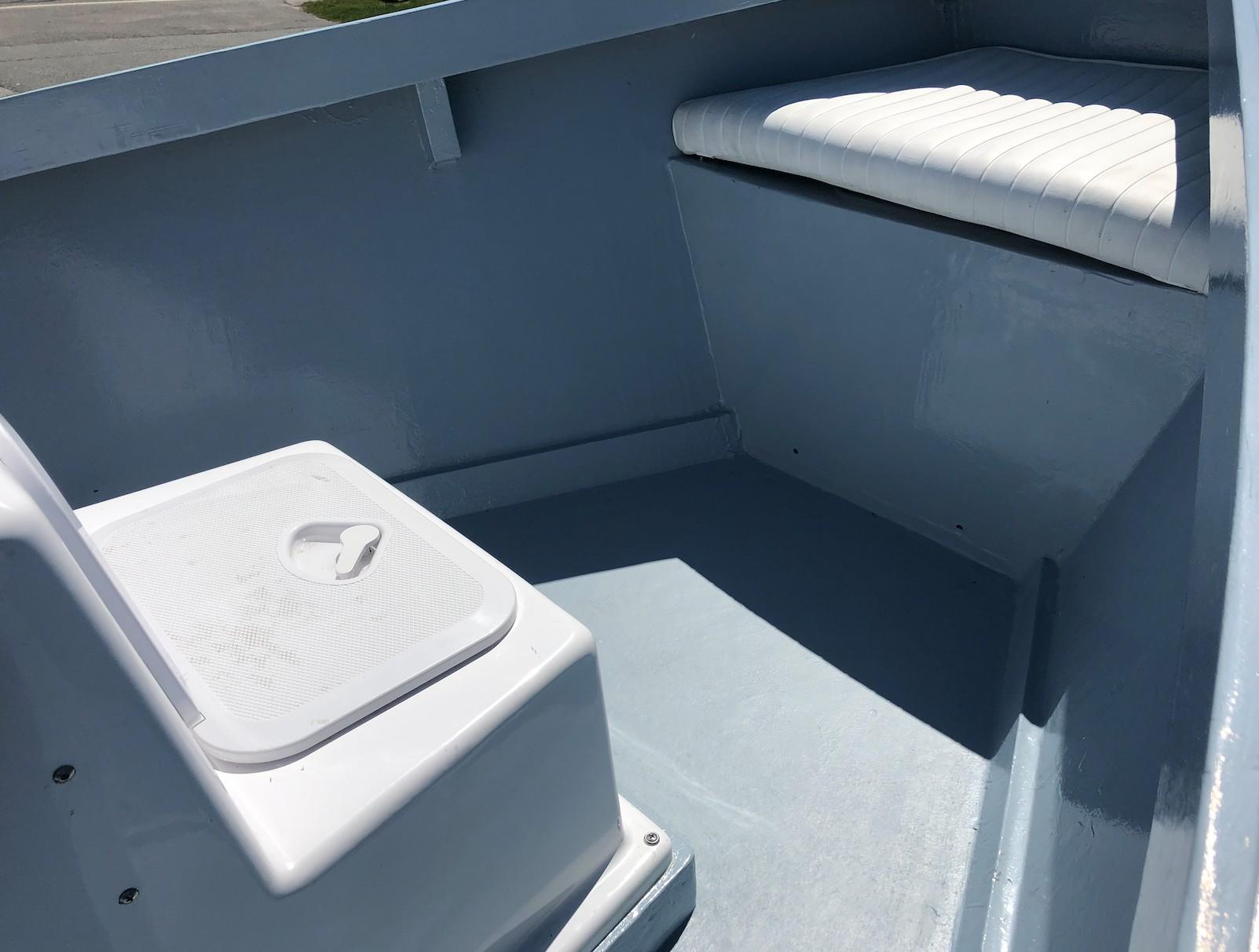

• Custom bow seat by Pelican Canvas
•  12-gallon plastic external fuel tank
• (2) bronze deck plugs
• S/S bow running light
• (4) black dock lines
• (2) fenders
• Lifejackets
• Danforth 15 lb throw anchor w/ 5ft chain and 25 ft rode

• 2018 Garmin Striker CV (5" Screen) GPS/ Chartplotter
• LED courtesy lights on console
• (1) Napa battery (2017) Group 24 (trickle charged all winter)
• Bluestar battery switch

Engine:

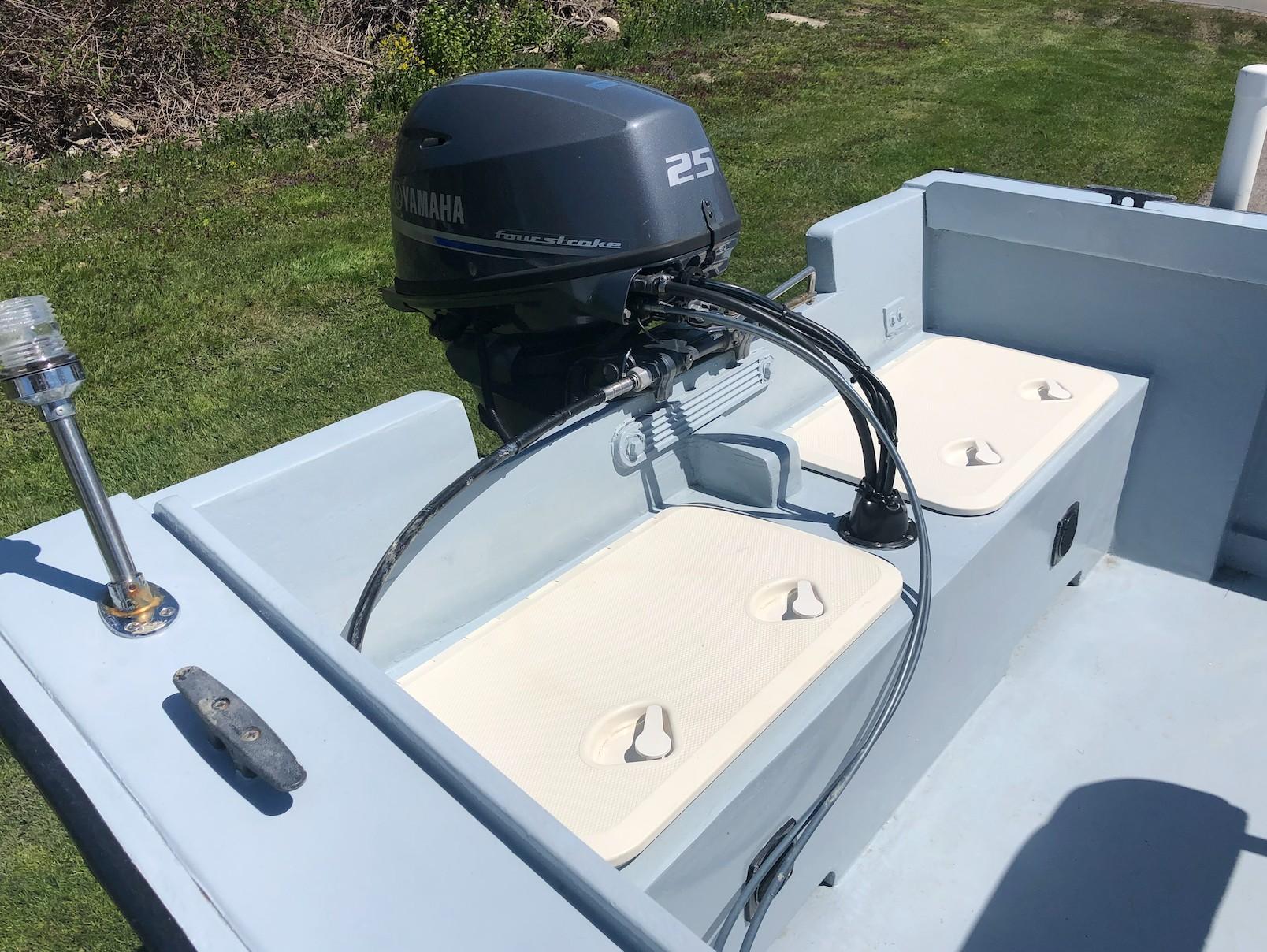

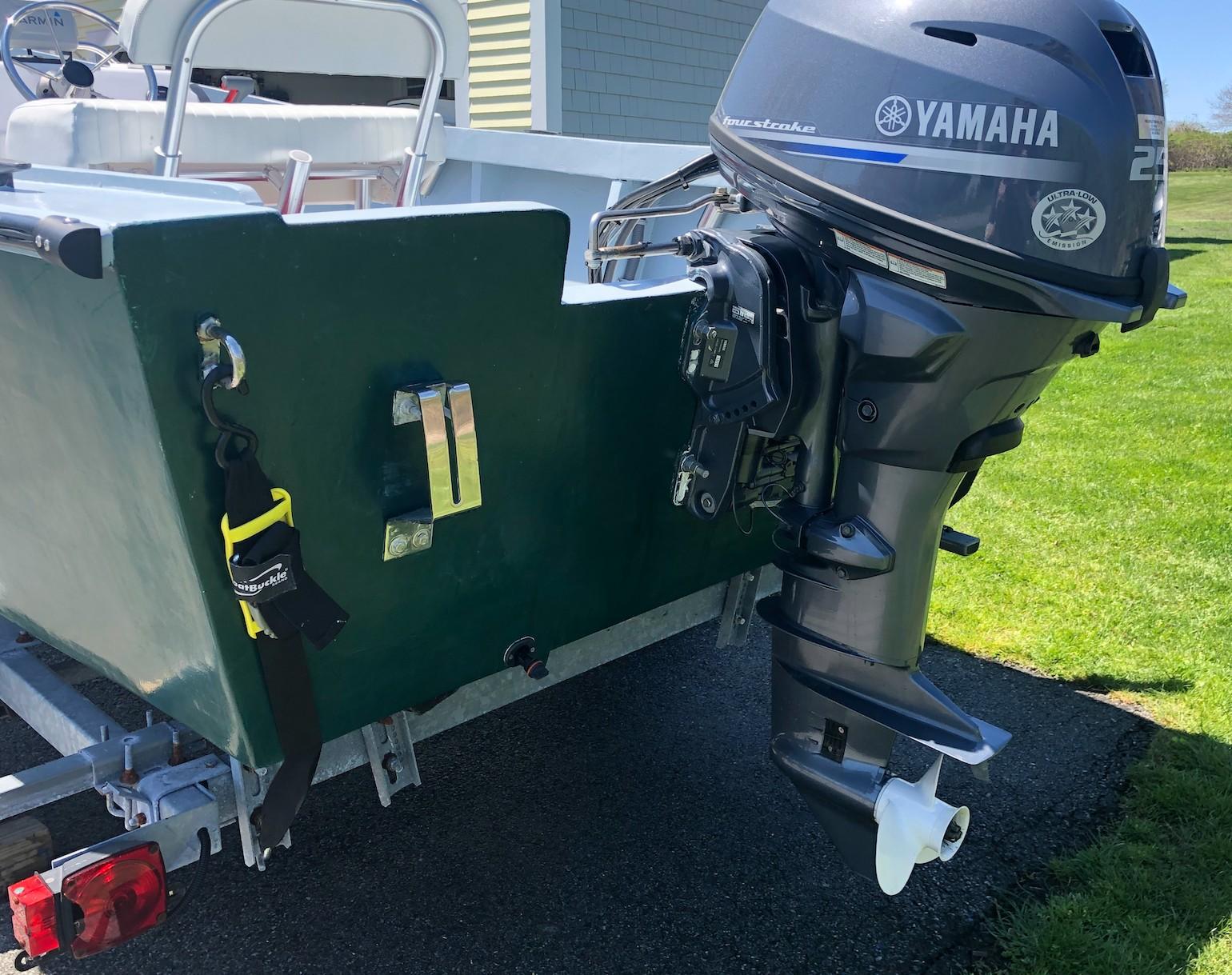

• 2017 Yamaha F25 LC -Serial #: 6FMKL-1011890 (35hrs Clocked 10/19)
• The engine has only been winterized 2 times (service done by Conanicut Marine Yamaha tech)
• 20" long shaft w/ power trim and tilt
• 703 Yamaha throttle control mounted on starboard side of console

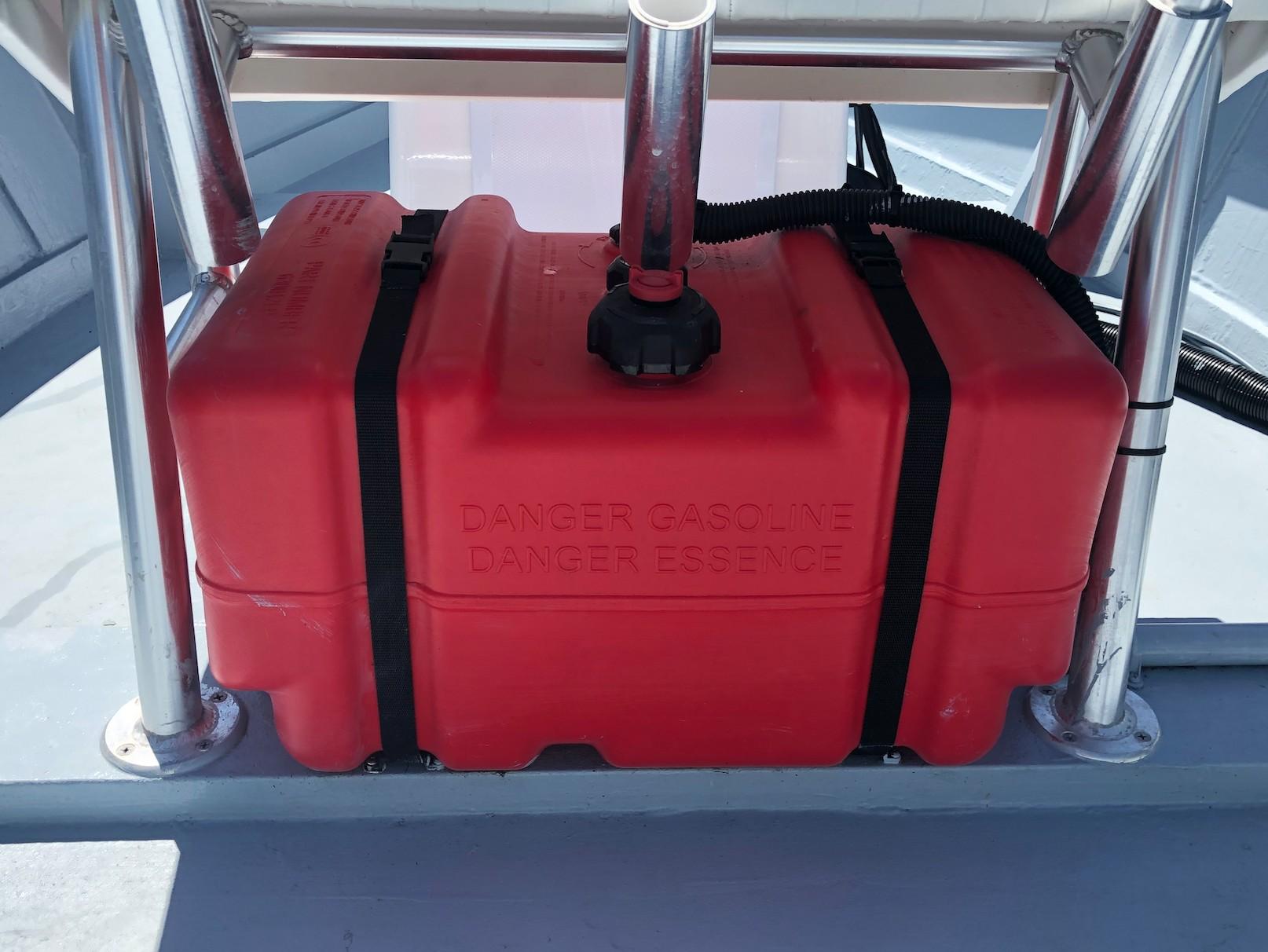

• 12-gallon plastic fuel tank mounted under helm seat

Trailer:

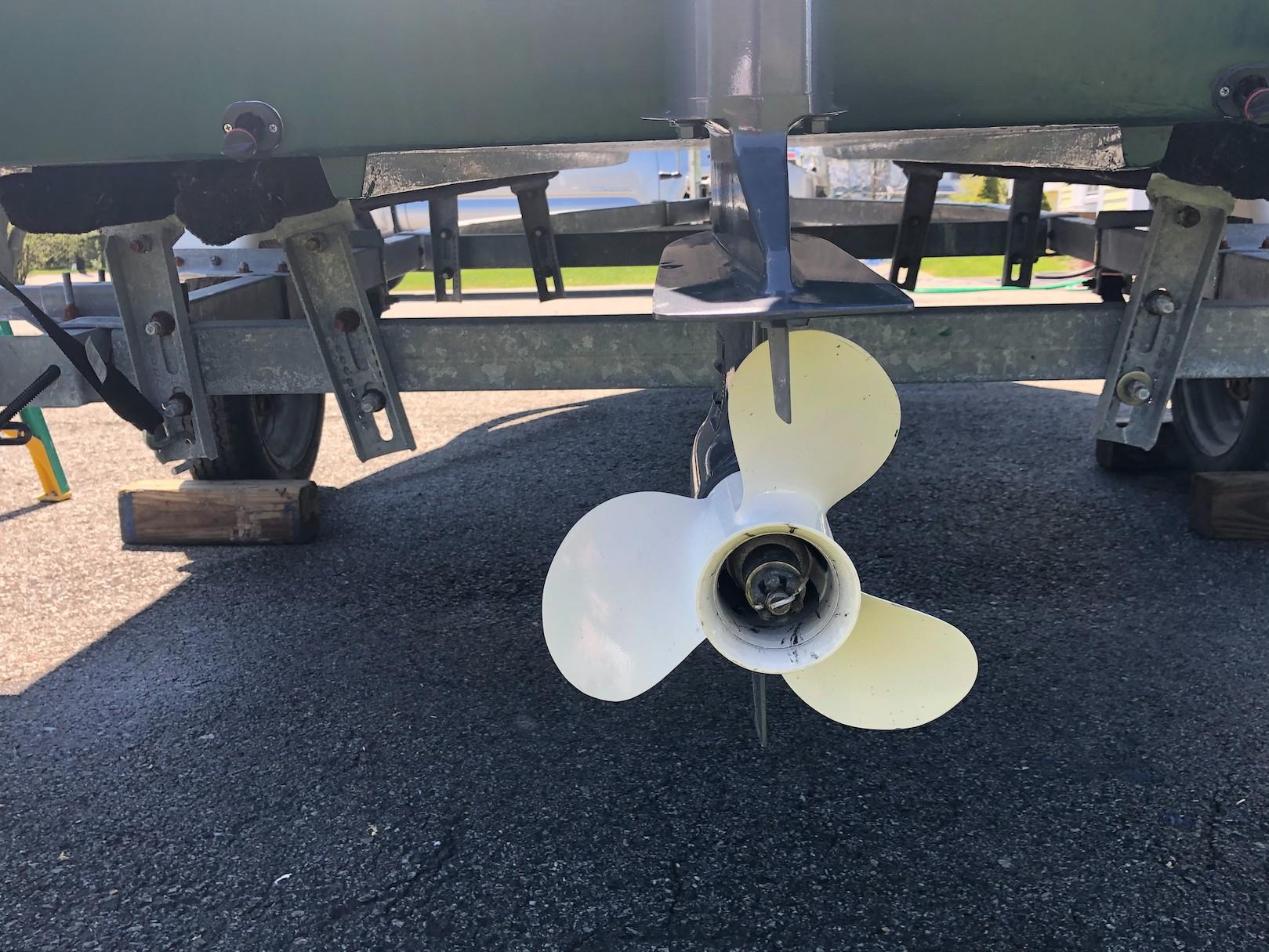

• Walmsley Marine single axle galvanized double bunk w/ plastic guiders
• Galvanized wheels with sealed hubs
• All lights functioning
• (2) transom boat tie-down straps
