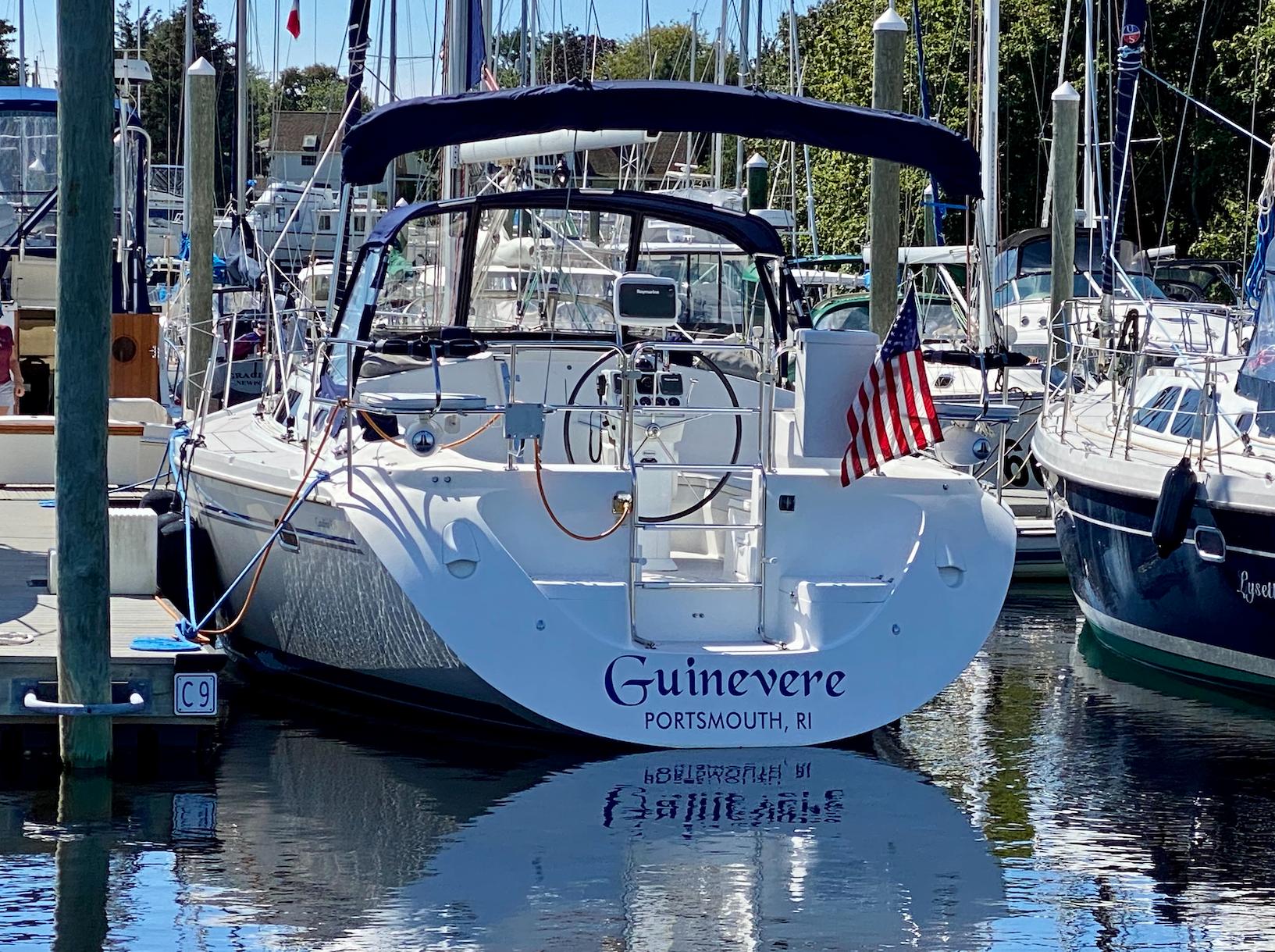

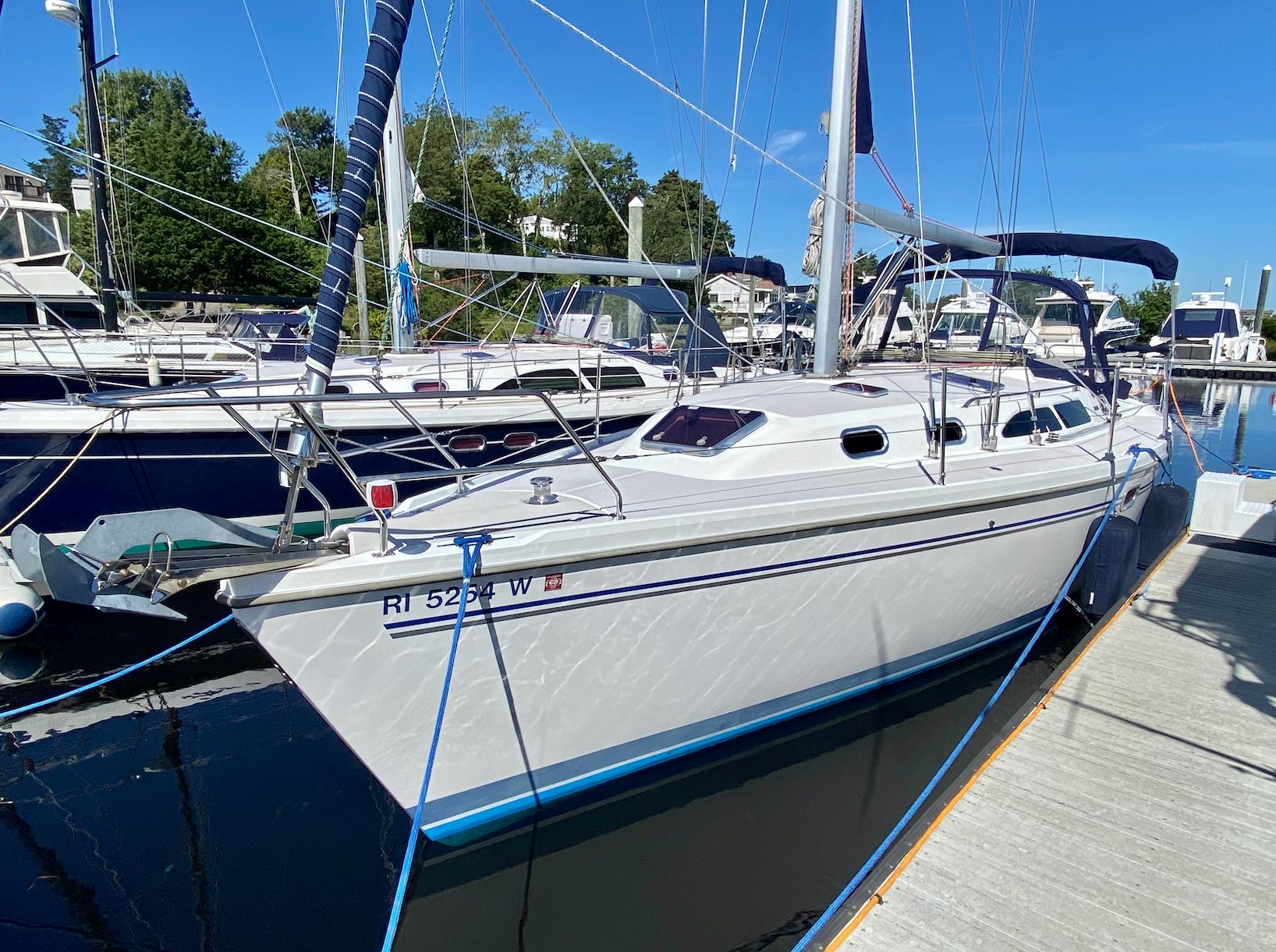

2004 Catalina 350

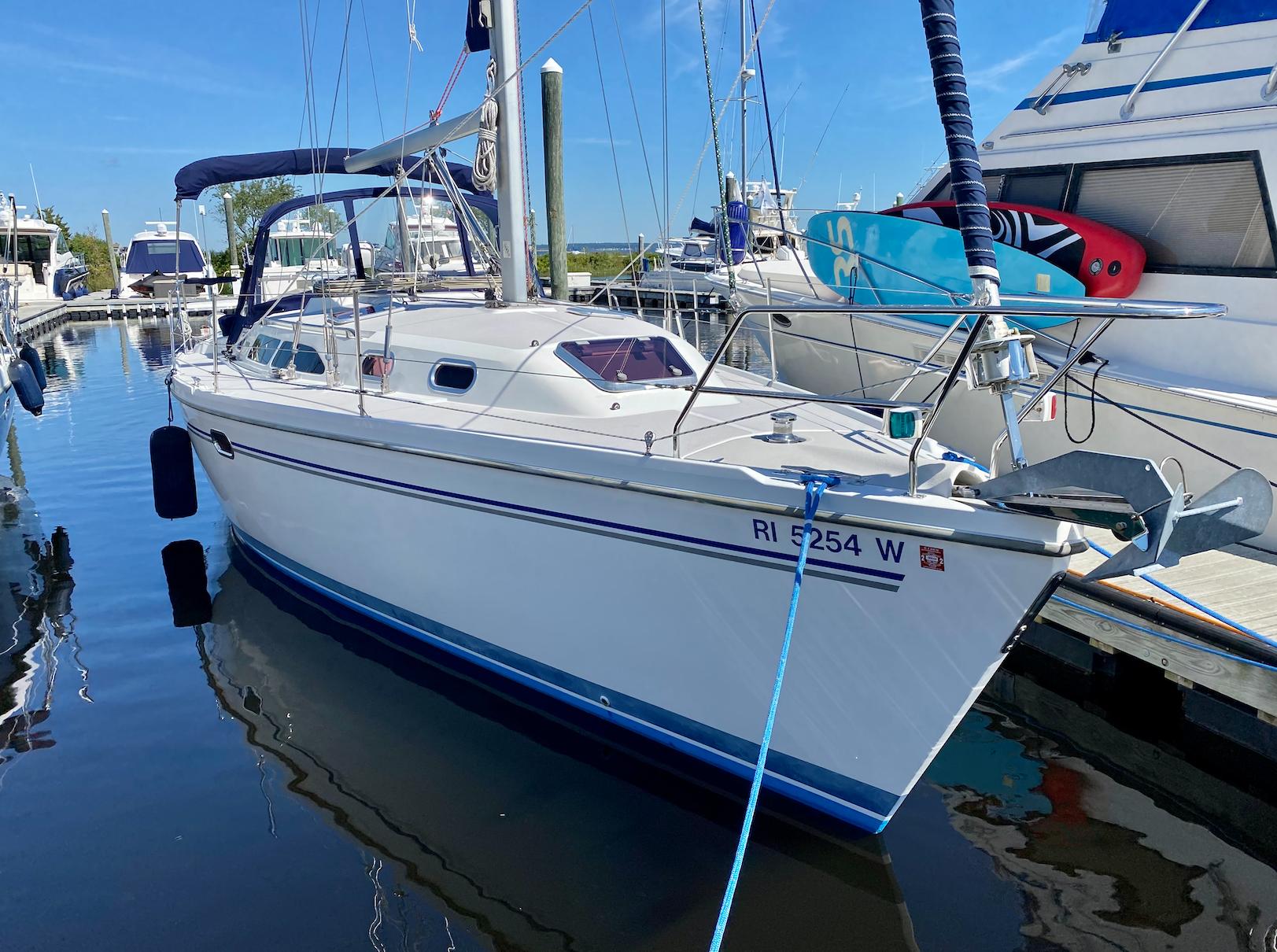

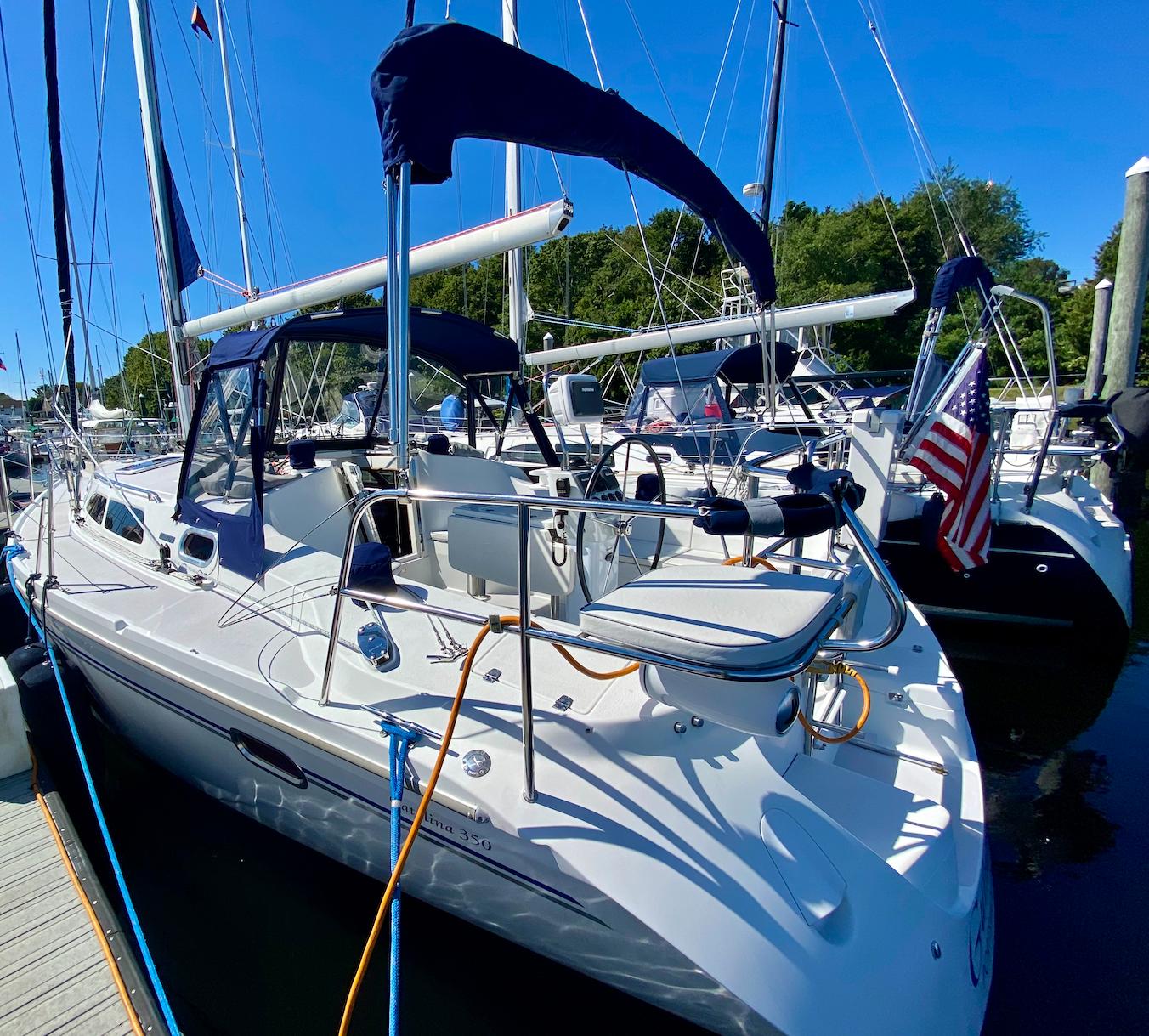

"GUINEVERE"  is a highly equipped and extremely clean Catalina 350. She has spent her life in freshwater until 2013 and her 35HP universal diesel has only 307 original hours. She has the wing-keel with a shoal draft of 4'6", a furling main & 150% genoa, two staterooms, and one head. It is no argument her current owners have taken her to the "next level". She represents an attractive opportunity to purchase a vessel that is not only turn-key but with all the desired bells and whistles.

Notable Highlights:

• All new canvas including HD acrylic glass
• Upgraded electronics & JL Audio sound system
• Airconditioning & heat
• Custom winter cover

Currently in the water on her slip and can be seen by scheduled appointment.

Hull is solid hand-laid fiberglass consisting of a vinylester skin coat and layers of chop, mat, and roving. The grid system produces a checkerboard of fiberglass supports in an athwartships pattern. The grid spreads loads from the shrouds while providing support for the mast, engine, and tanks. Stainless steel traverse supports help stabilize the mast's below-deck compression post. All of the boats have wiring and plumbing conduits. The deck is constructed of layers of chop, mat, and roving, cored with Balteck AL 600 end grain balsa core. Pre-tapped aluminum plates are bedded in high-load areas. The rudder is large and semi-balanced, single-skinned FRP with a composite post. Wing keel is a combination of cast iron and silicone bronze.

Color Layout:

Hull: White Gelcoat

Covestripe: Separated blue above grey single lines

Bootstripe: Double blue

Bottom: Blue (Interlux Pacifica plus, red layer, two blue layers above)

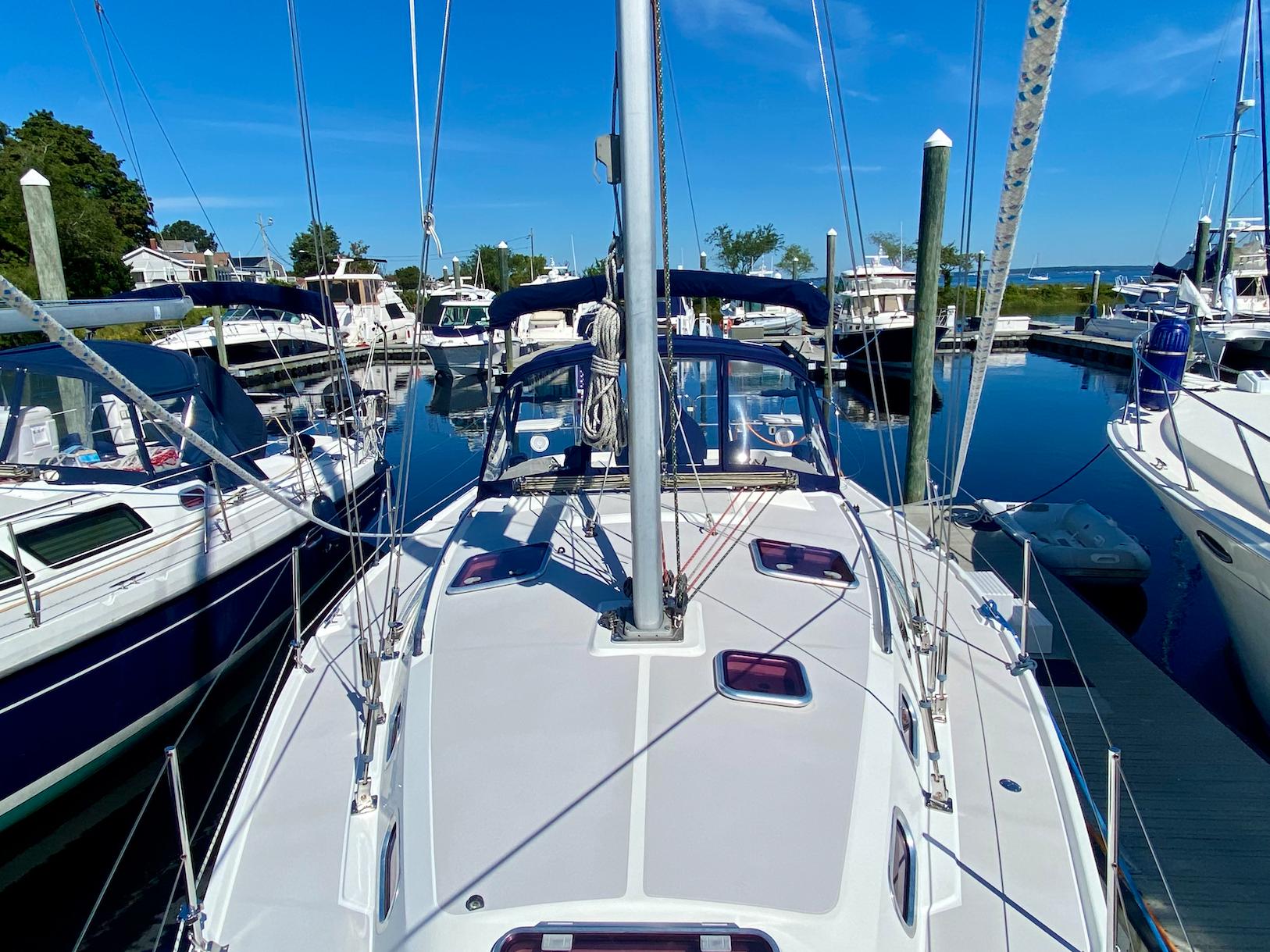

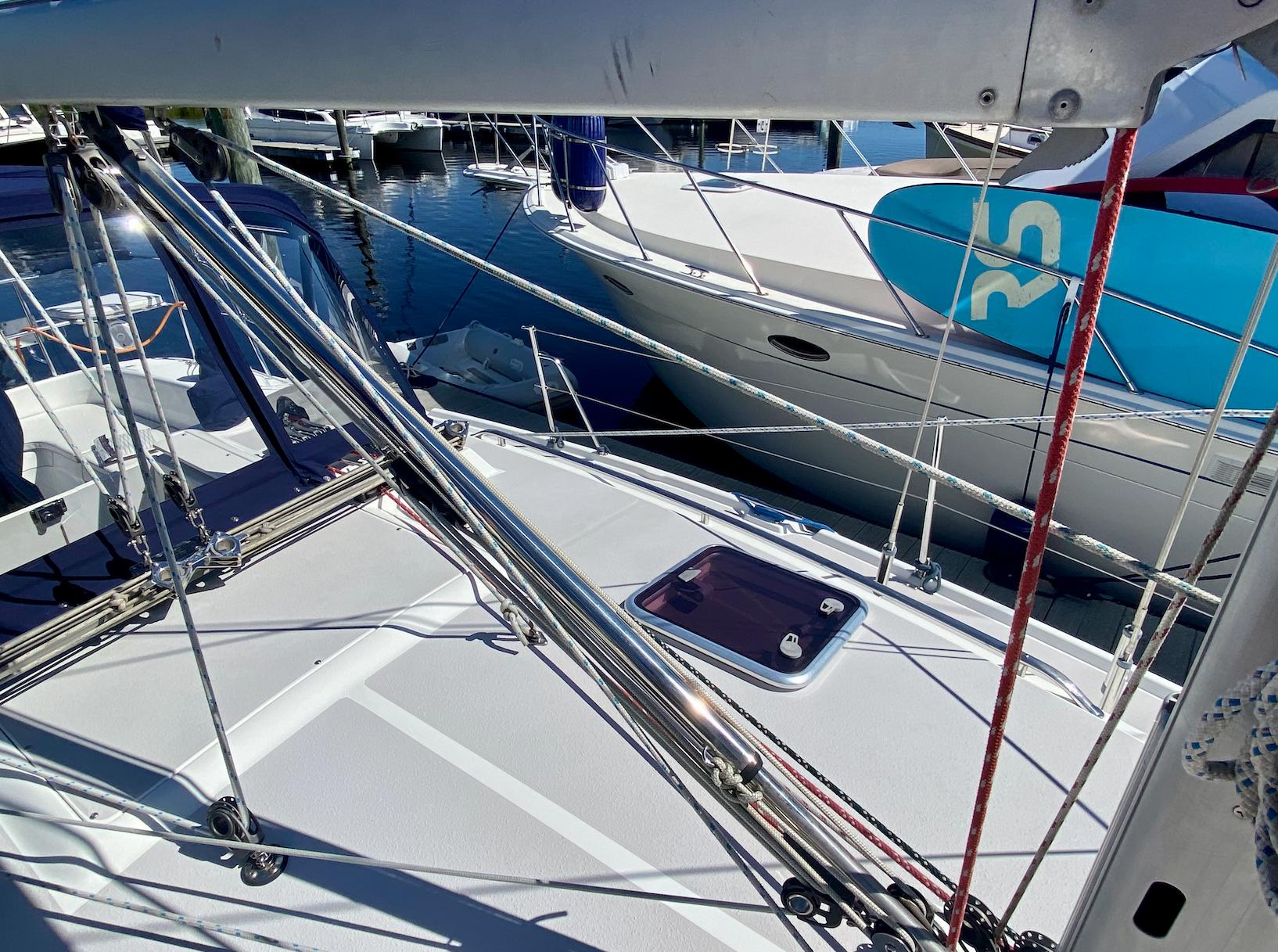

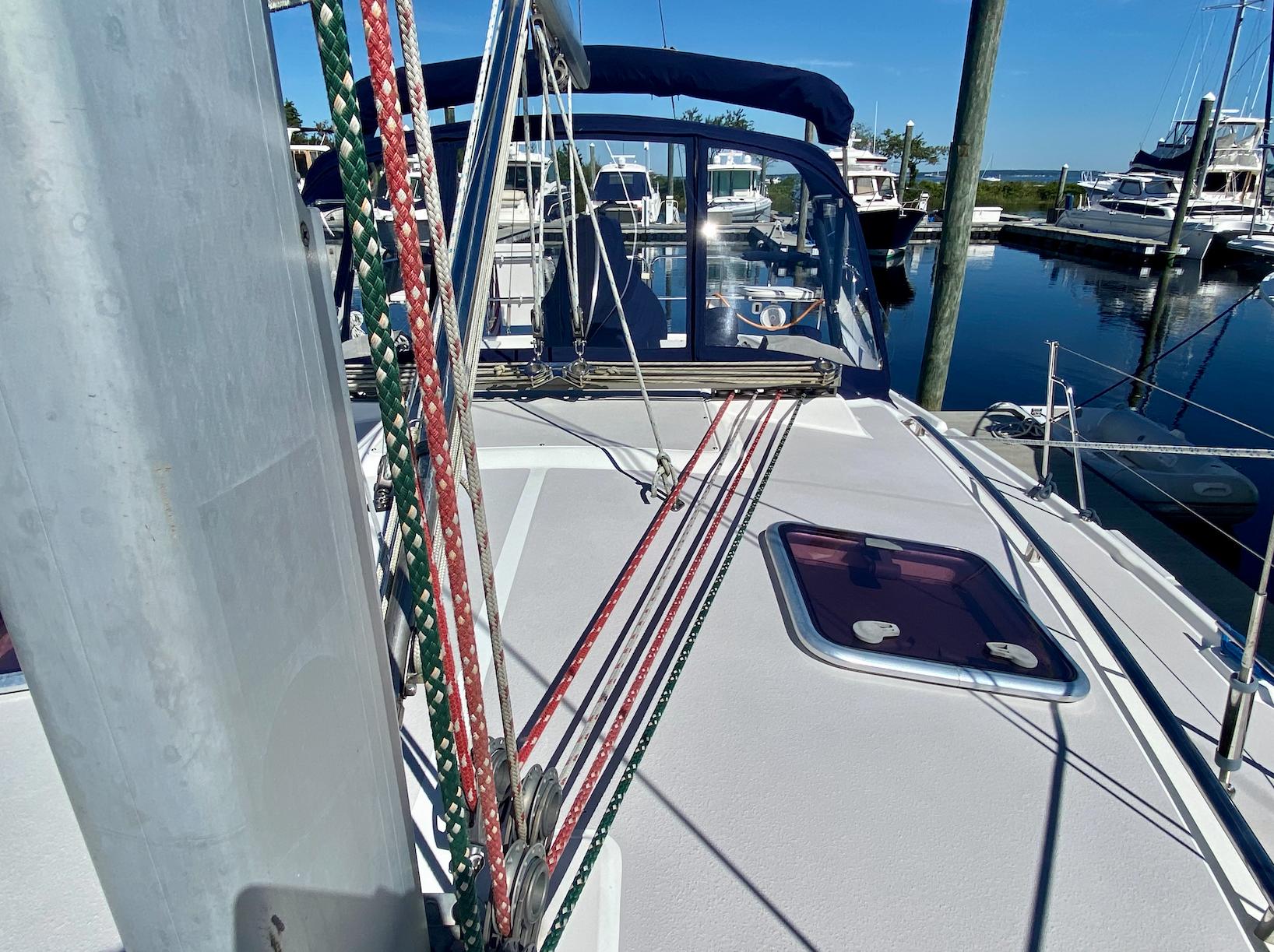

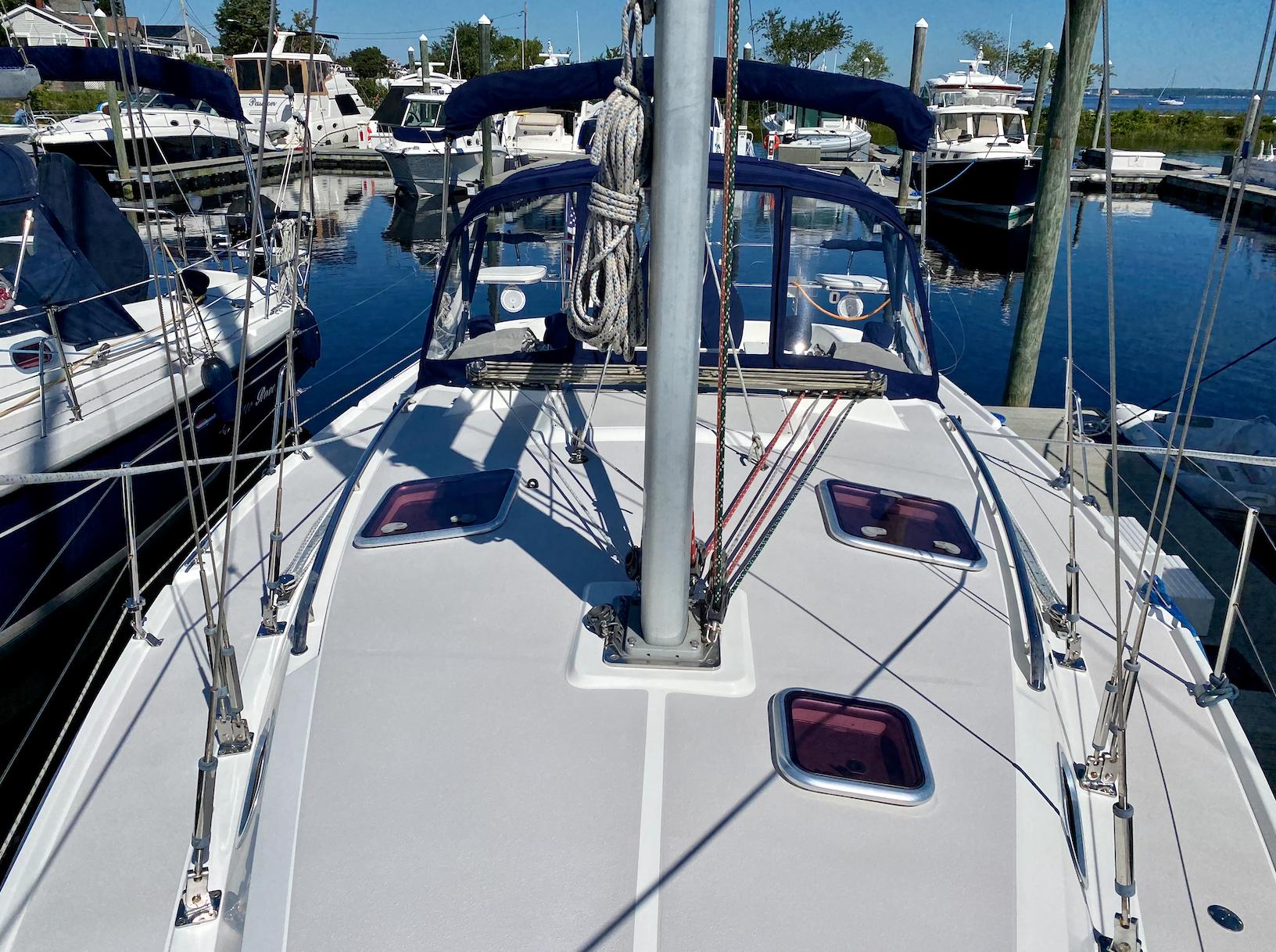

• (5) Lewmar deck hatches
• 3-blade bronze PYI Inc. Max-Propeller
• Dual anchor rollers

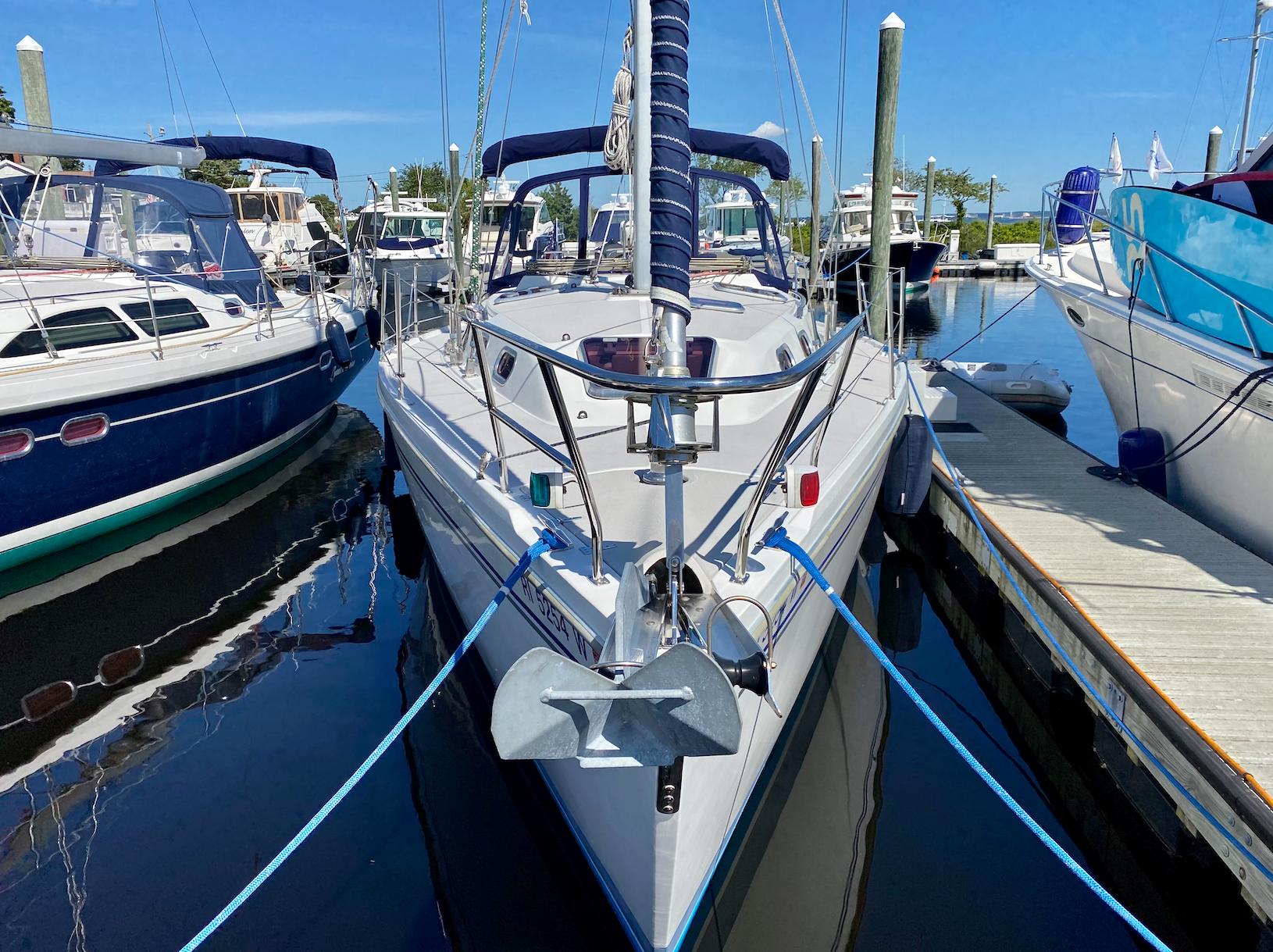

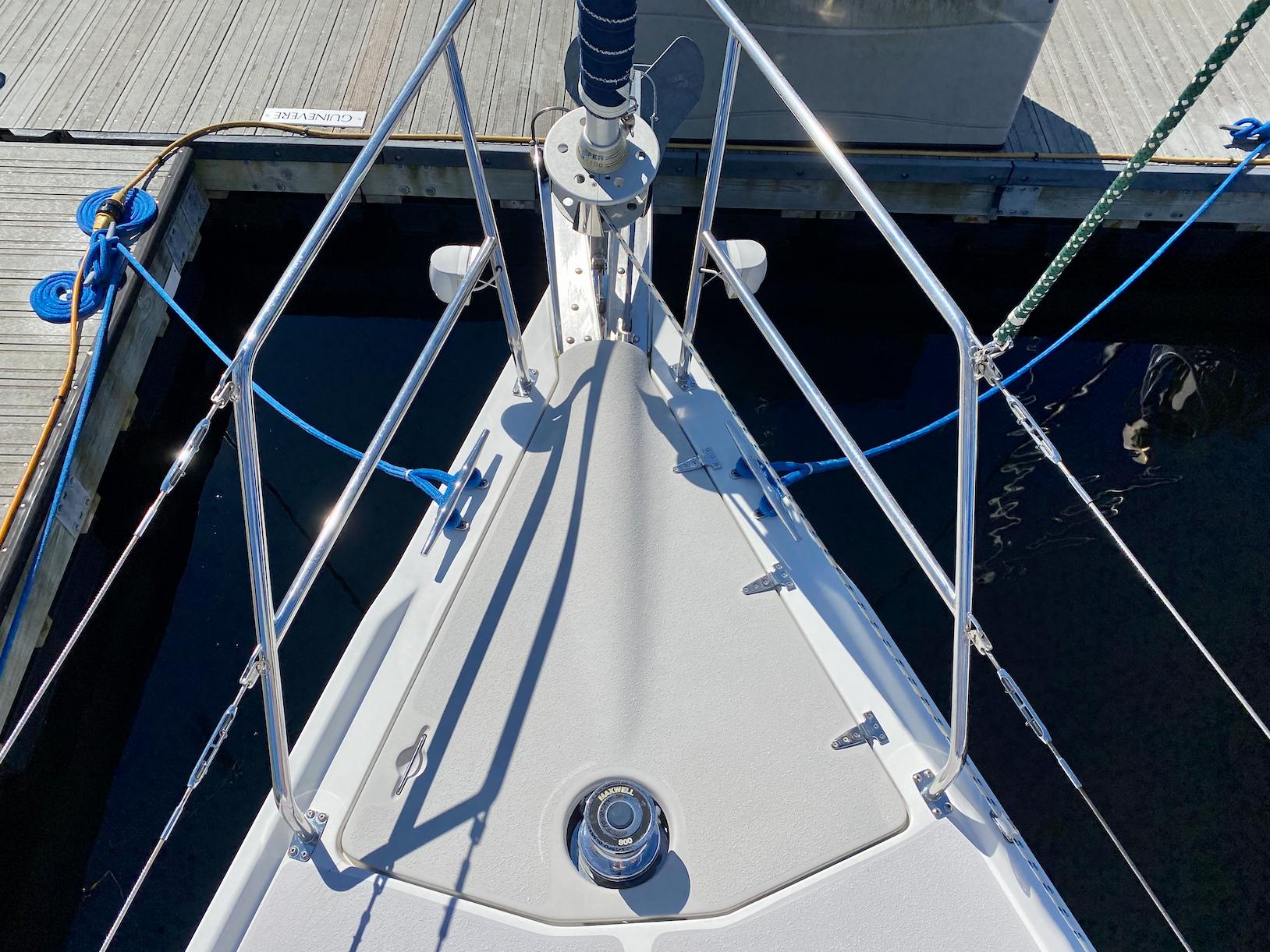

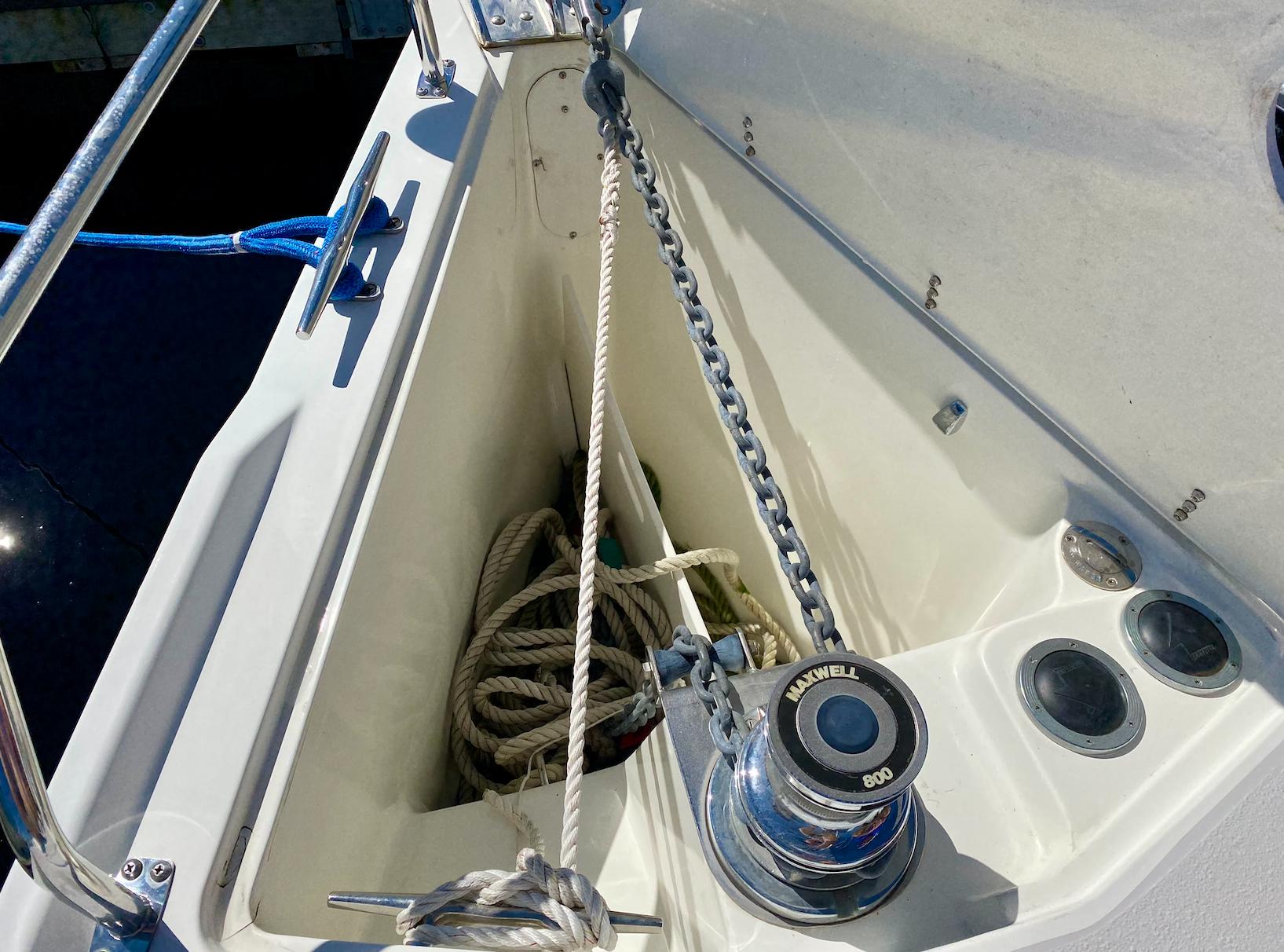

• Maxwell 800 electric windlass w/ footswitches
• Delta plow anchor w/ Imtra chain-swivel, chain & rode
• Divided anchor locker insert
• Double through s/s wired lifelines (Replaced & new hardware - 2017)
• Stainless deck grab rails
• Pelican clipped boarding gates to port & starboard

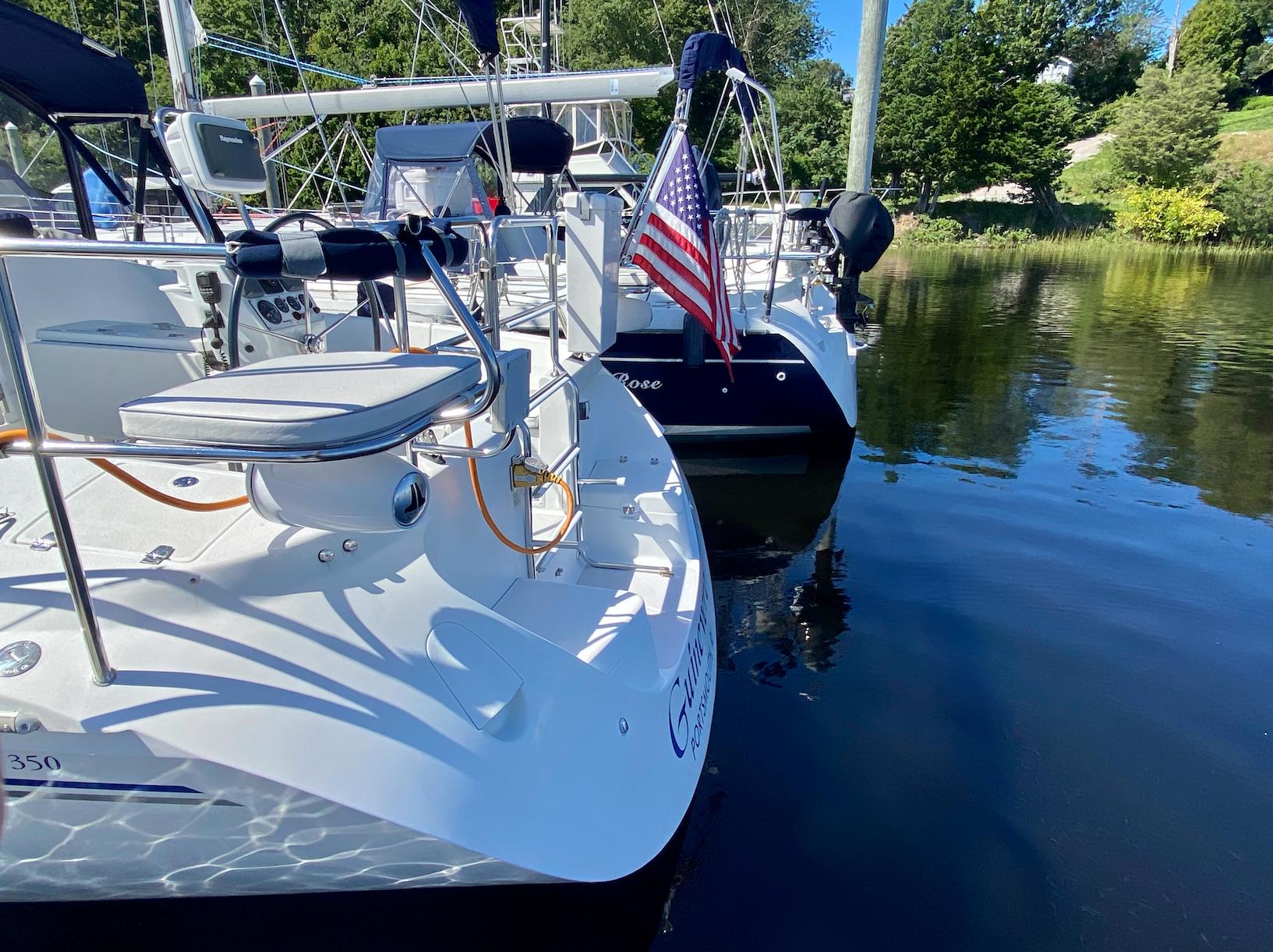

• Walk-through transom w/ large (4)-step folding swim ladder
• Stern perch seating on transom pulpit w/ cushions

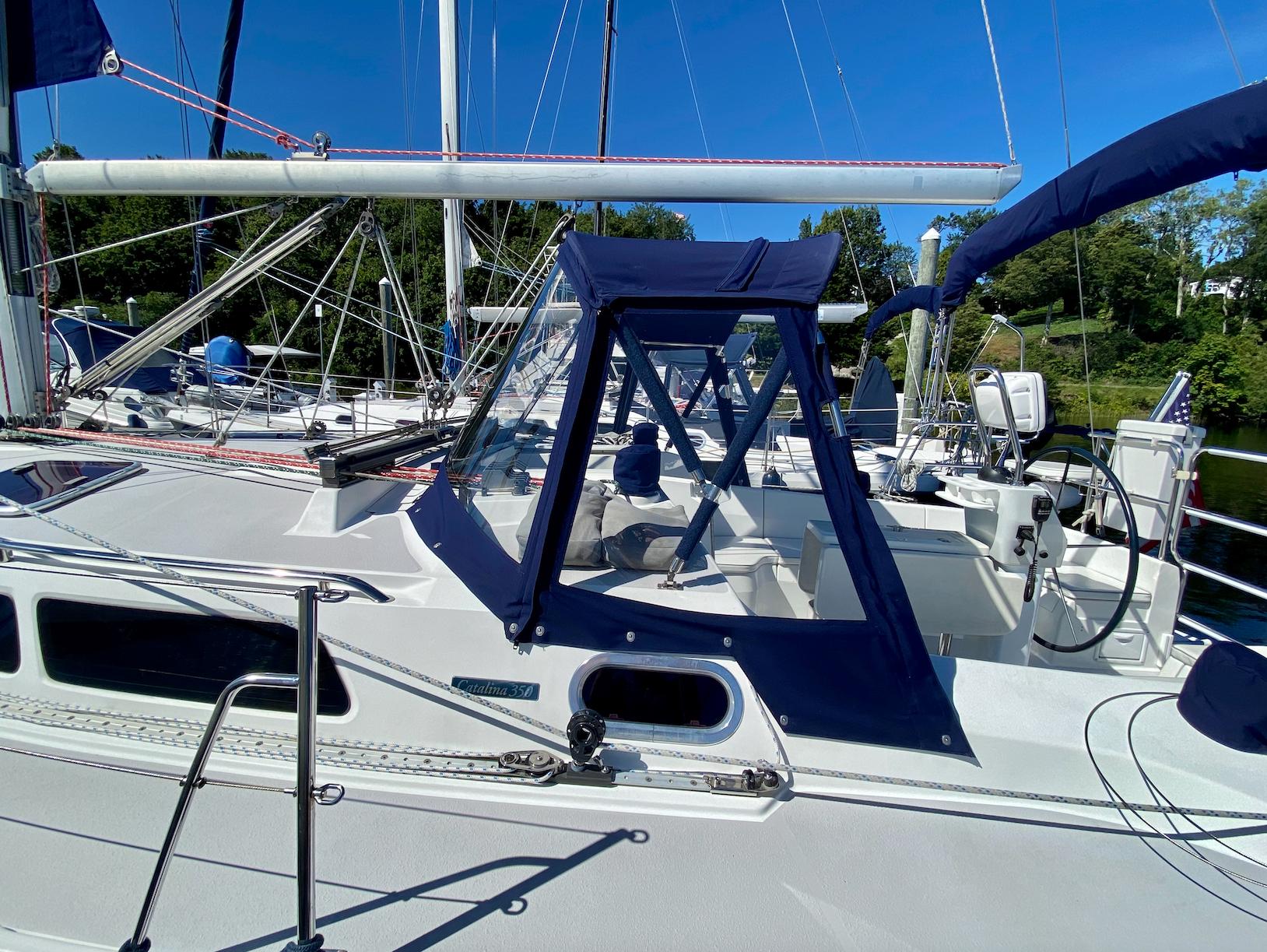

• Re-engineered taller dodger frame w/ anti-chafing protection

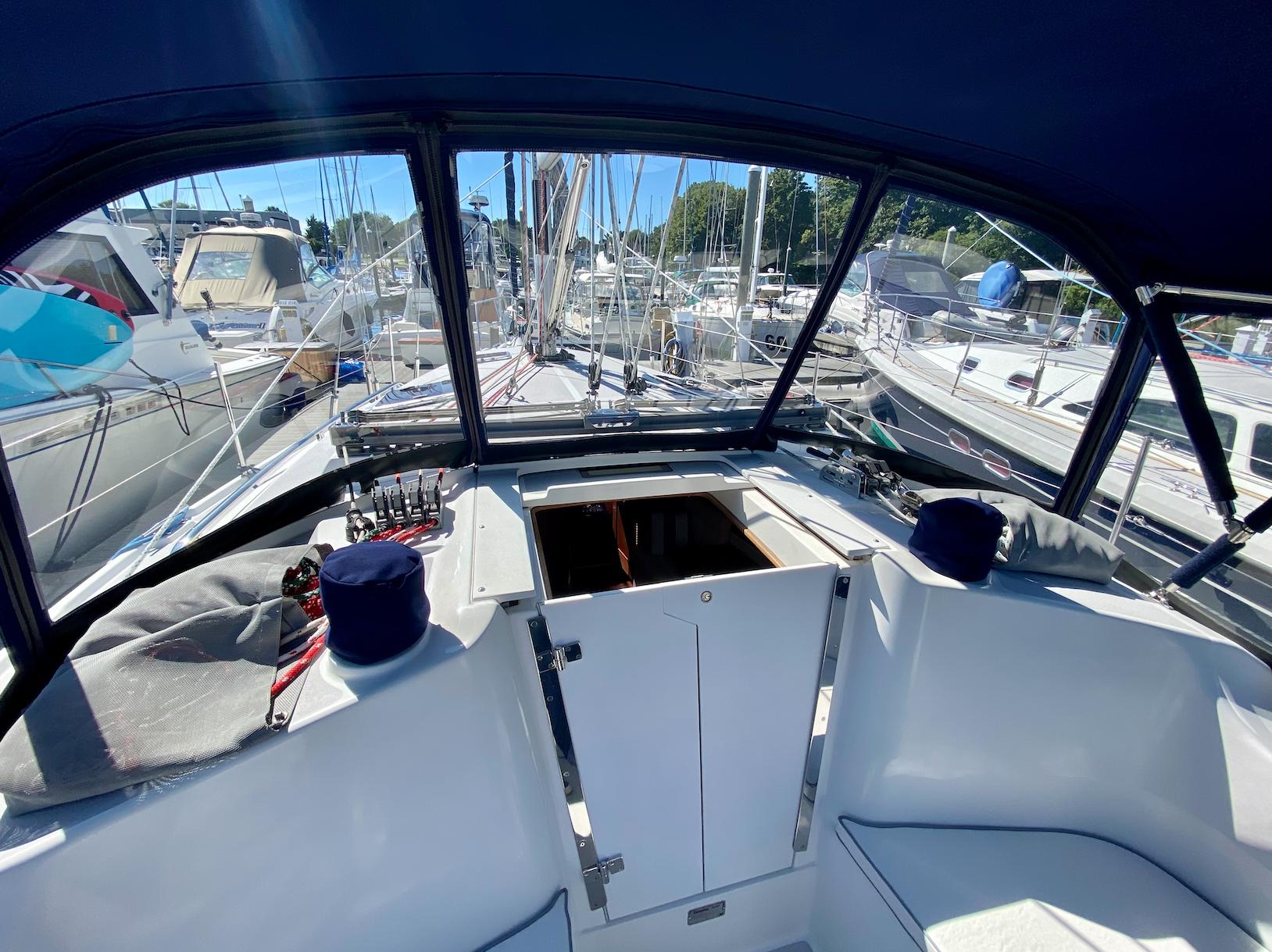

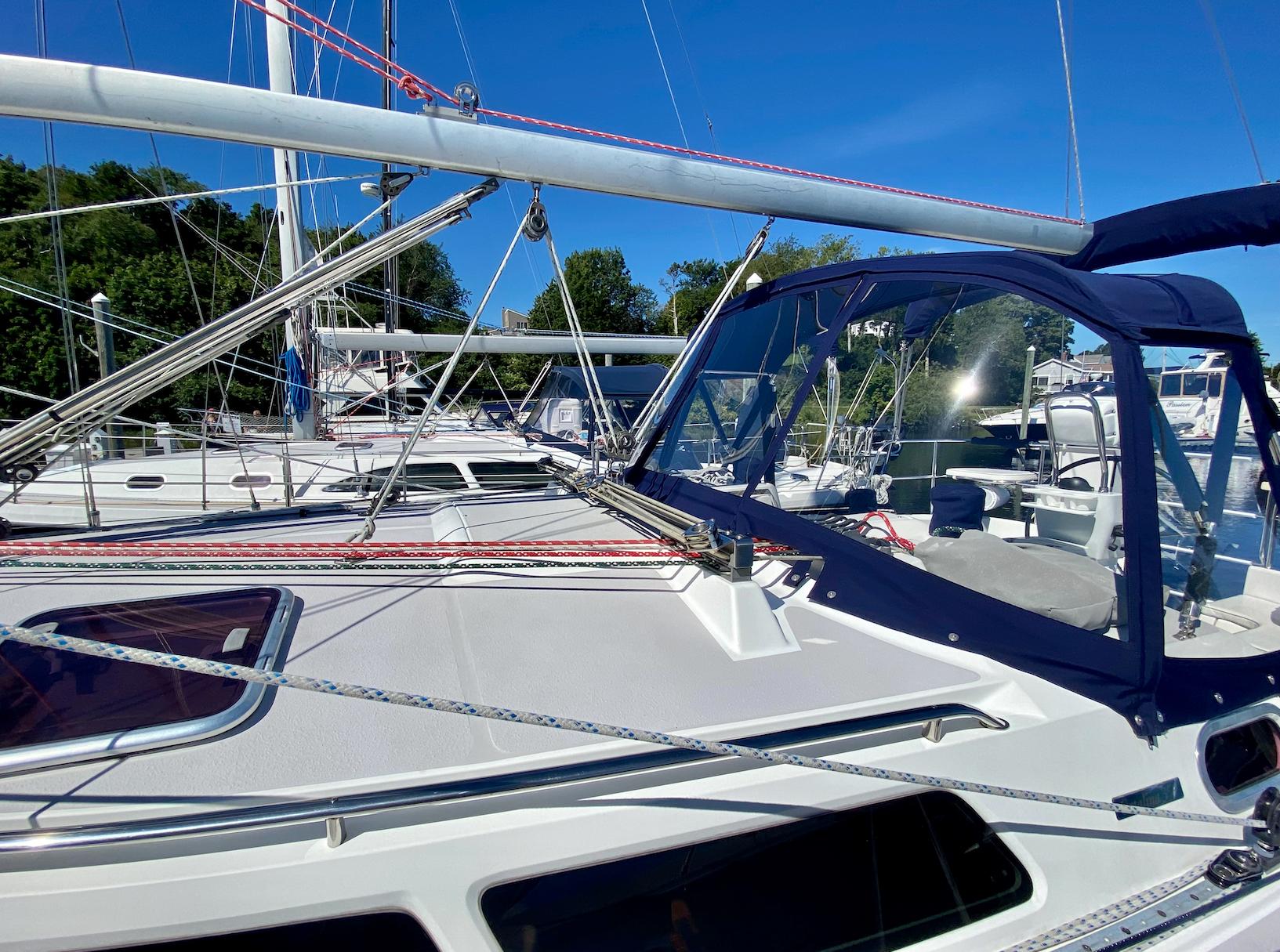

• Canvas in Navy: Dodger, bimini, connector, boots, helm cover & winch covers (Acrylic is double-thick HD glass w/ full-frontal opening capability & custom latching, New - 2018)

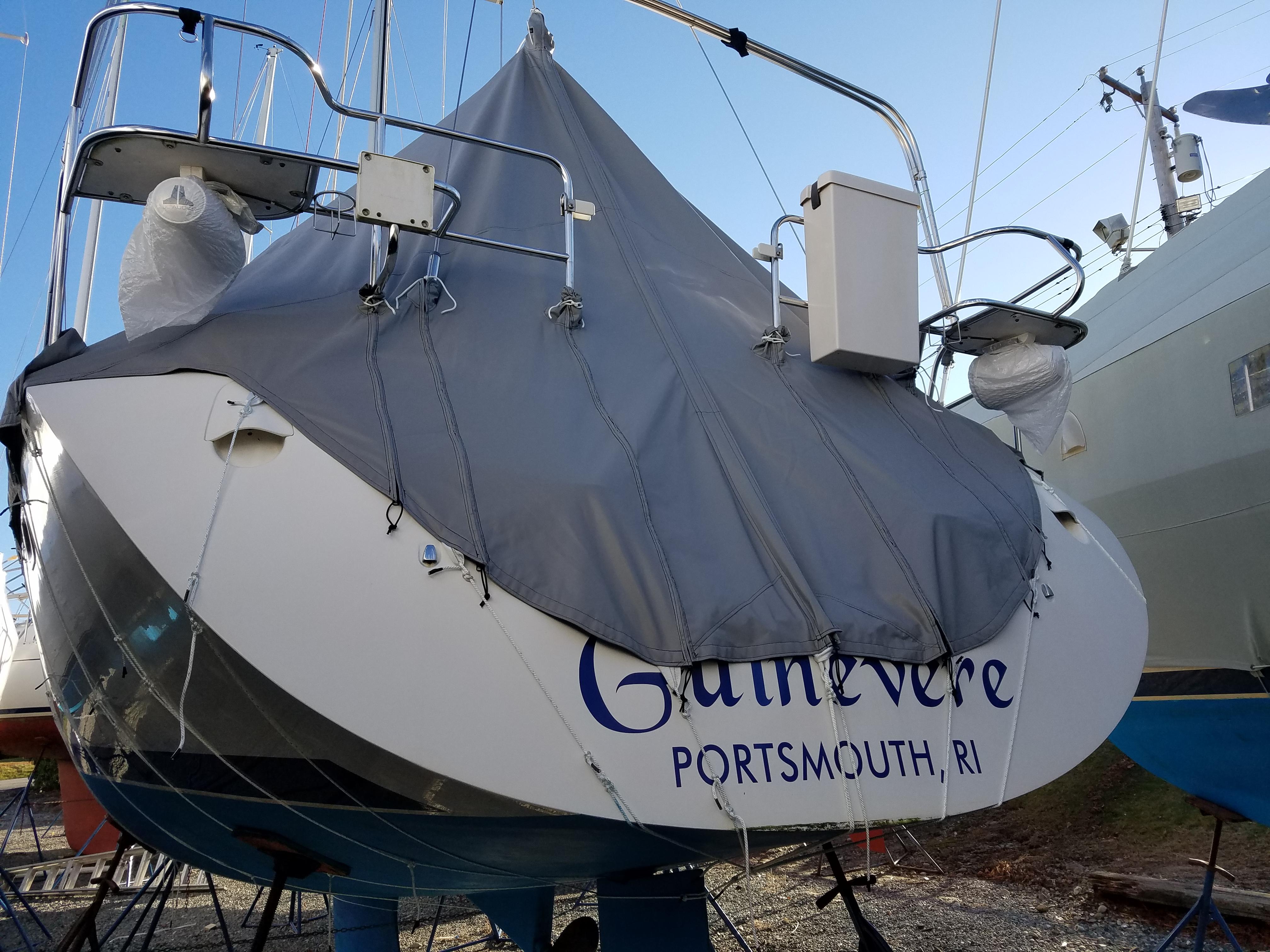

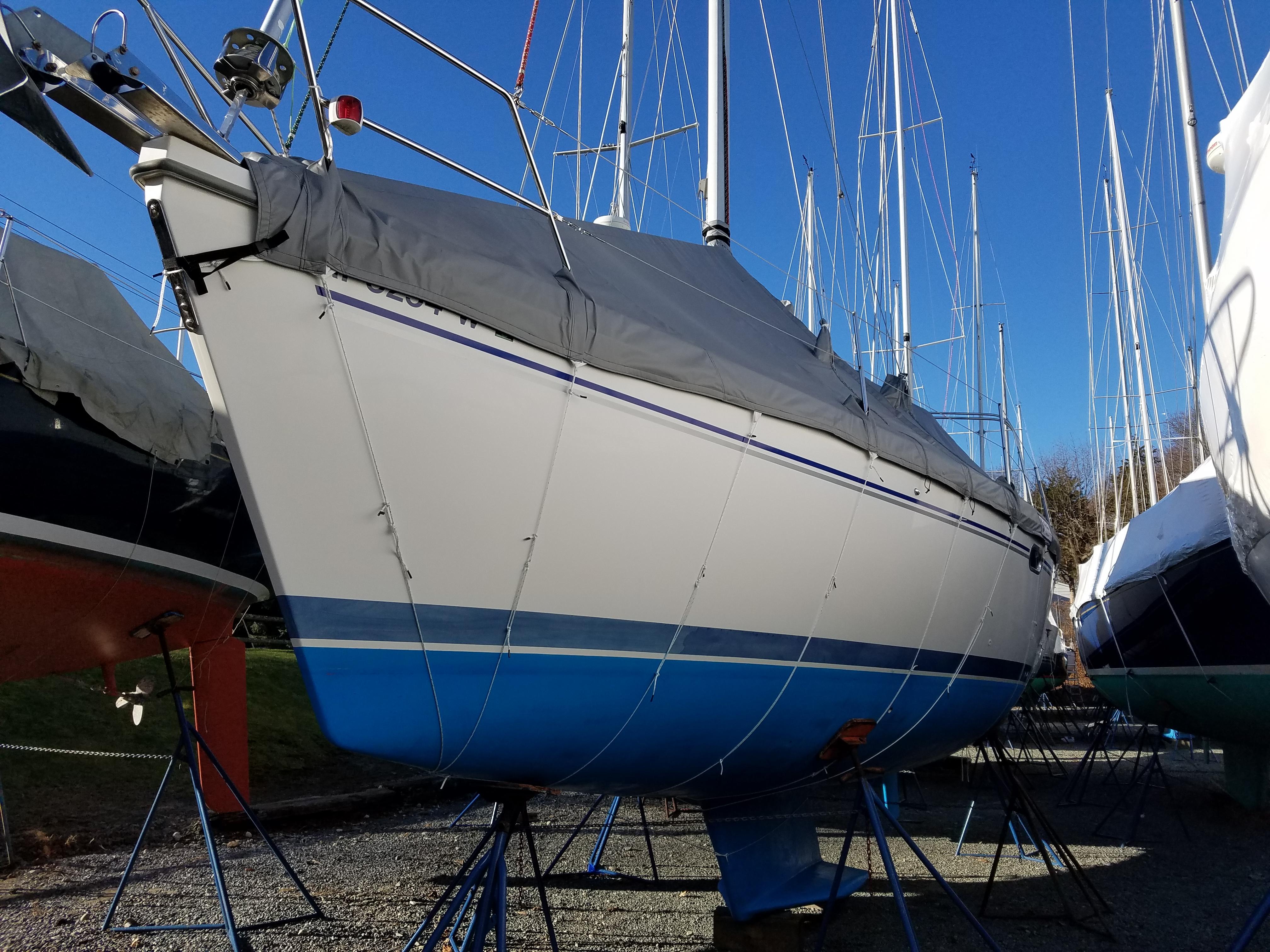

• Custom canvas winter cover in grey w/ collapsible supports (2018)
• White leather cockpit cushions w/ grey piping

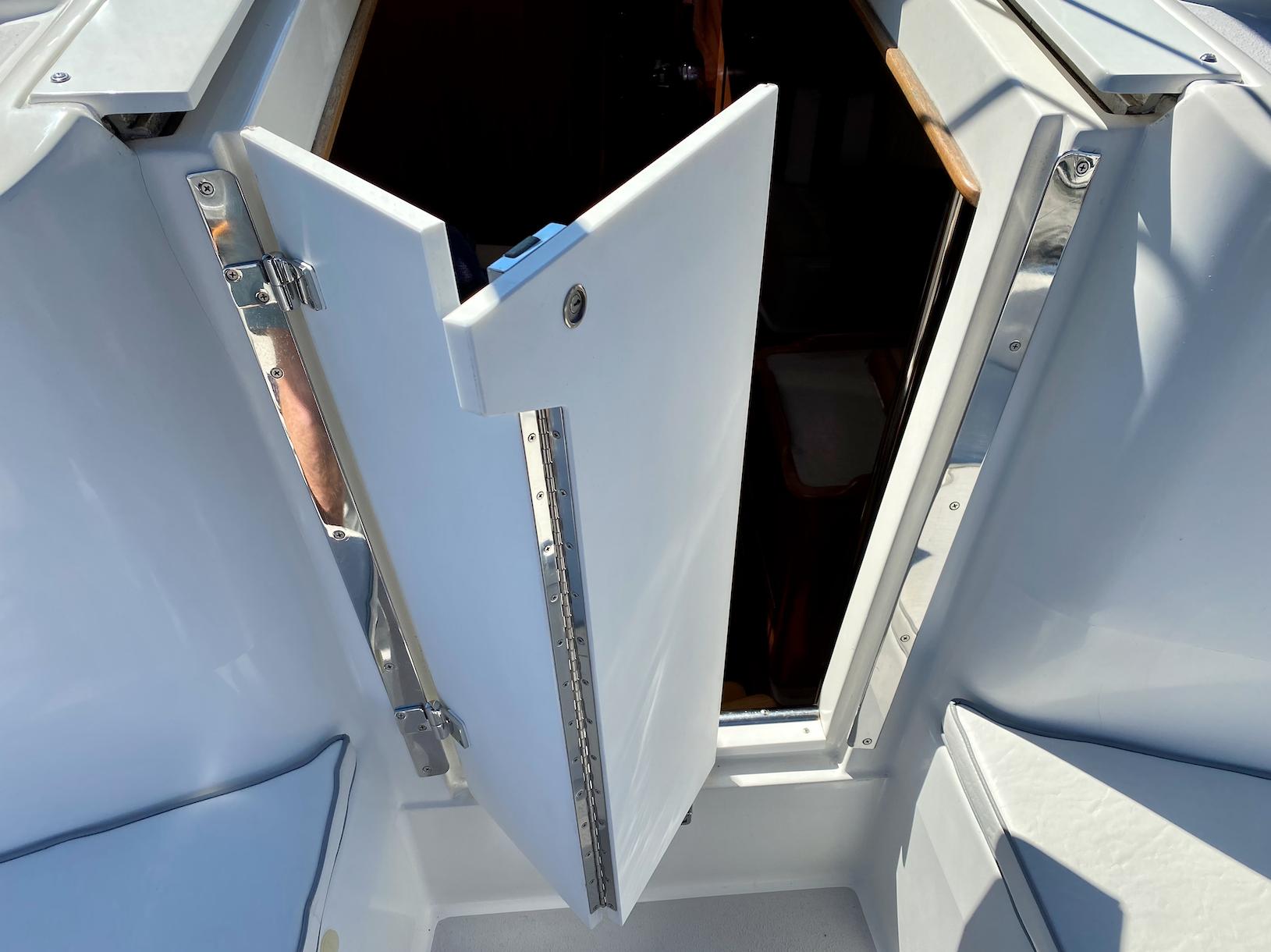

• Custom StarBoard folding companionway door w/ ss hinges & lock
• Orignal teak companionway slats
• Cockpit table w/ two fold-down leaves
• Custom triple beverage holder on the helm
• Edson destroyer wheel wrapped in navy leather
• Freshwater pressurized hot & cold cockpit shower
• Garhauer ss flag staff w/ US ensign
• Lifesling3 MOB/ lifesaver unit in hardcase
• FRP ob engine mount bracket
• Taylor fenders w/ custom navy fleece covers
• (5) mooring lines (2013)

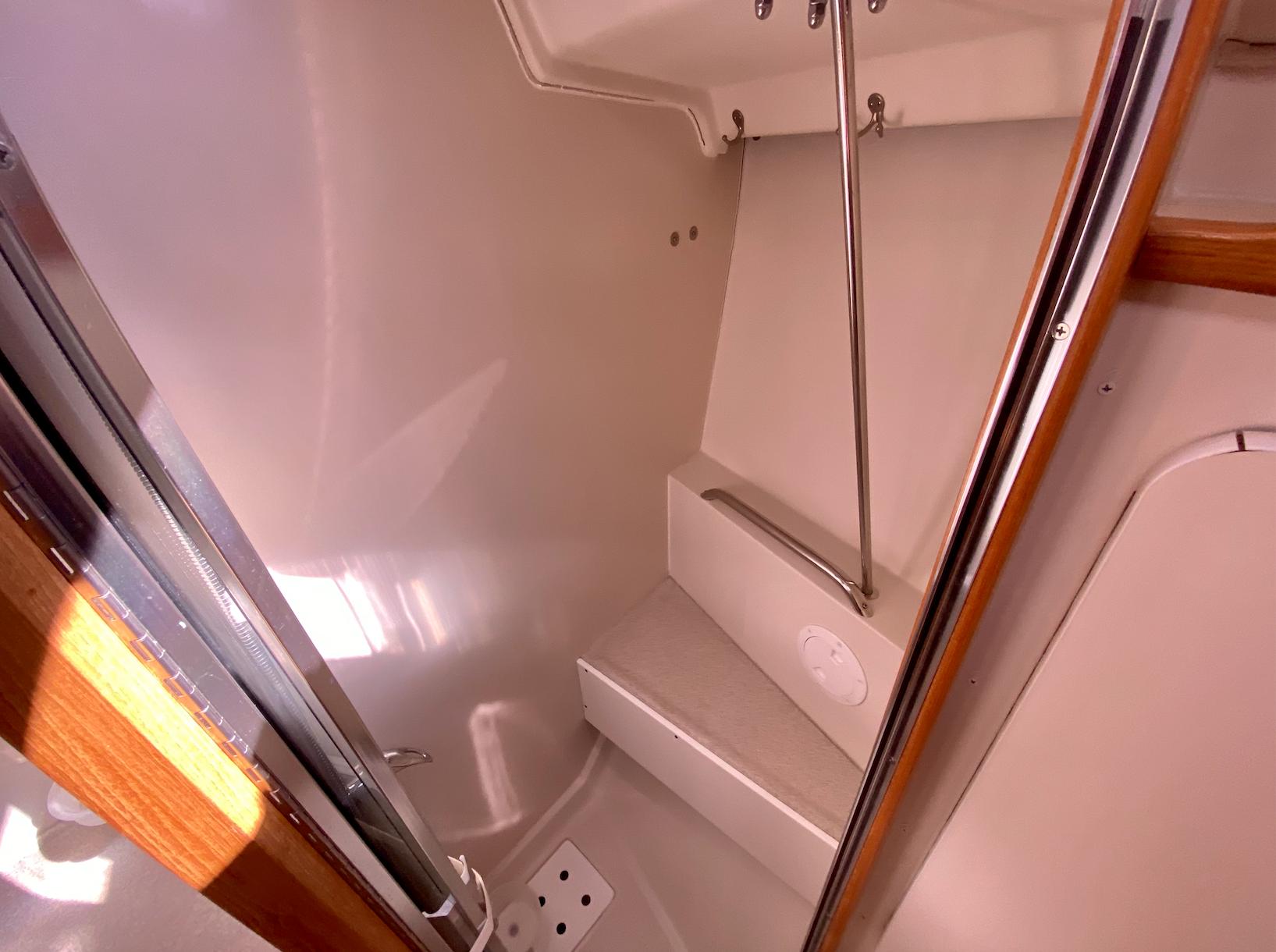

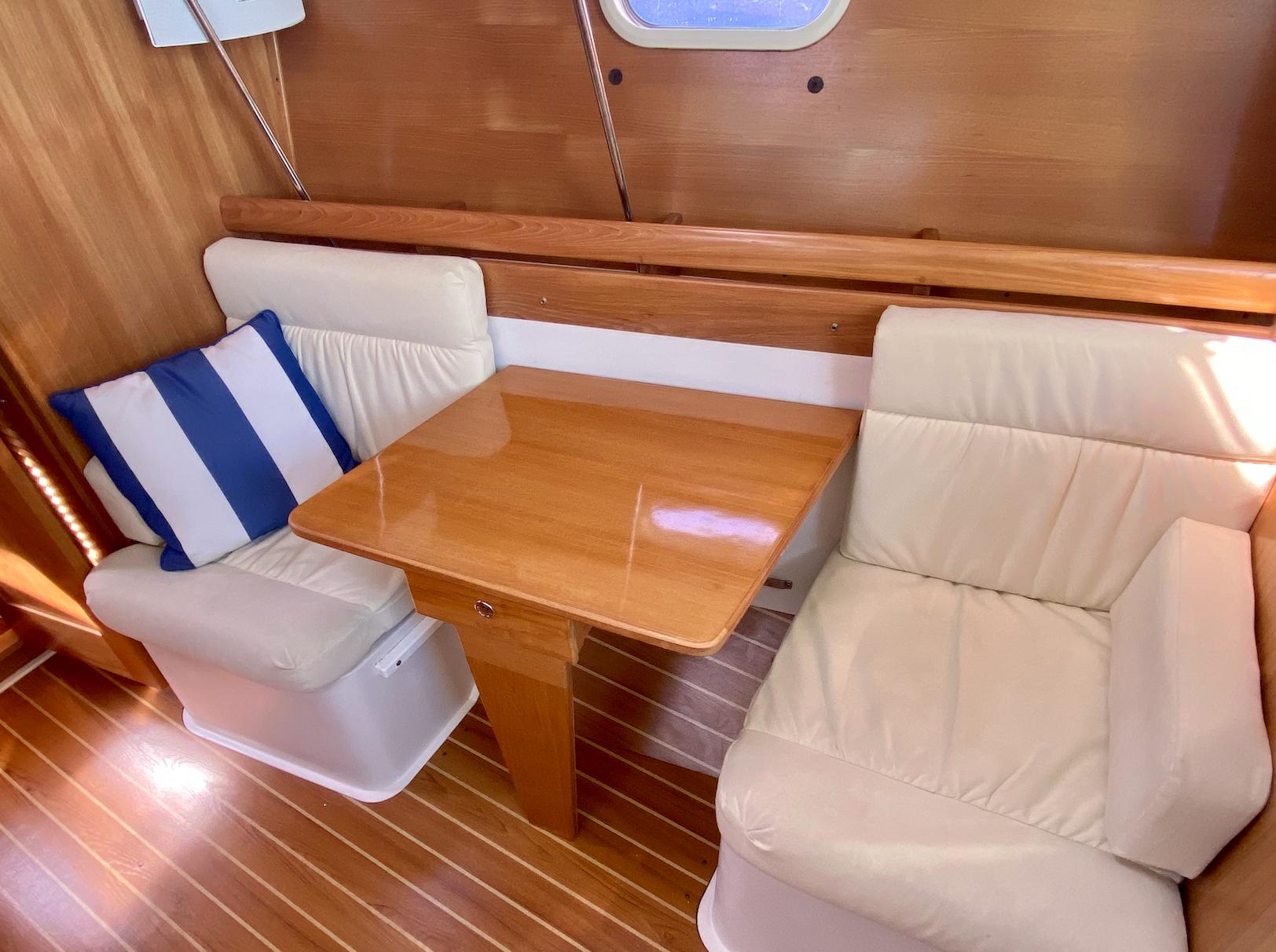

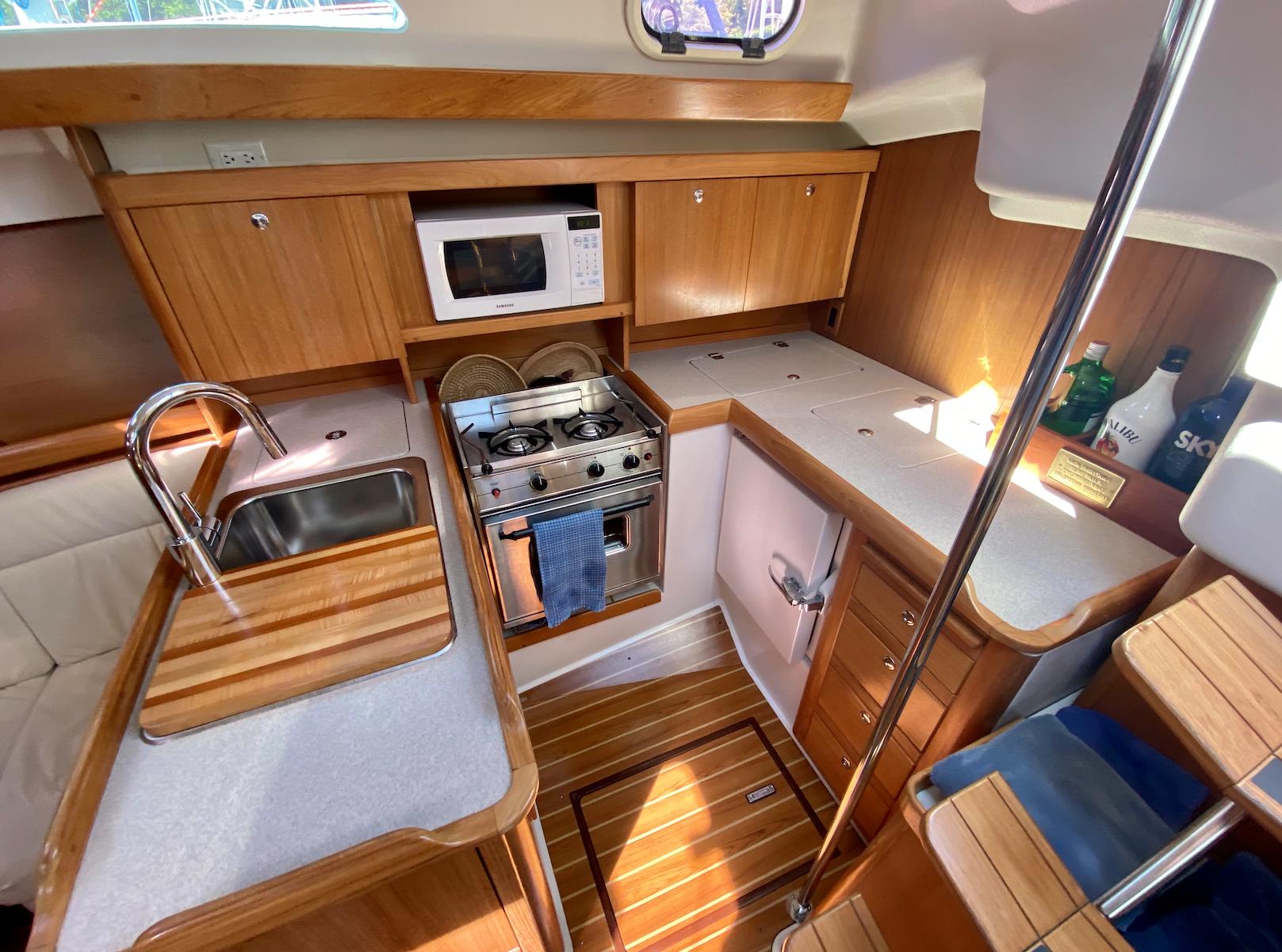

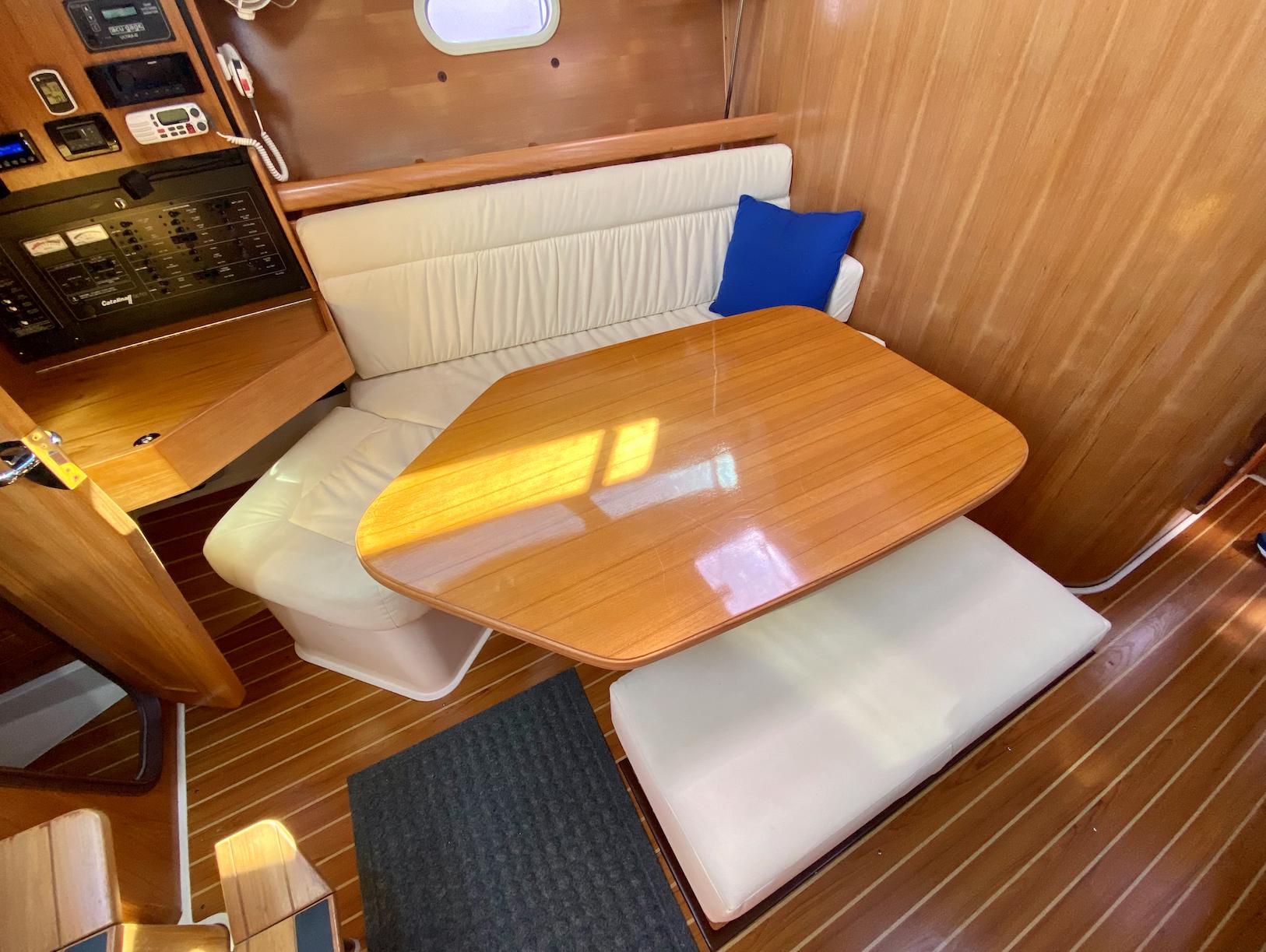

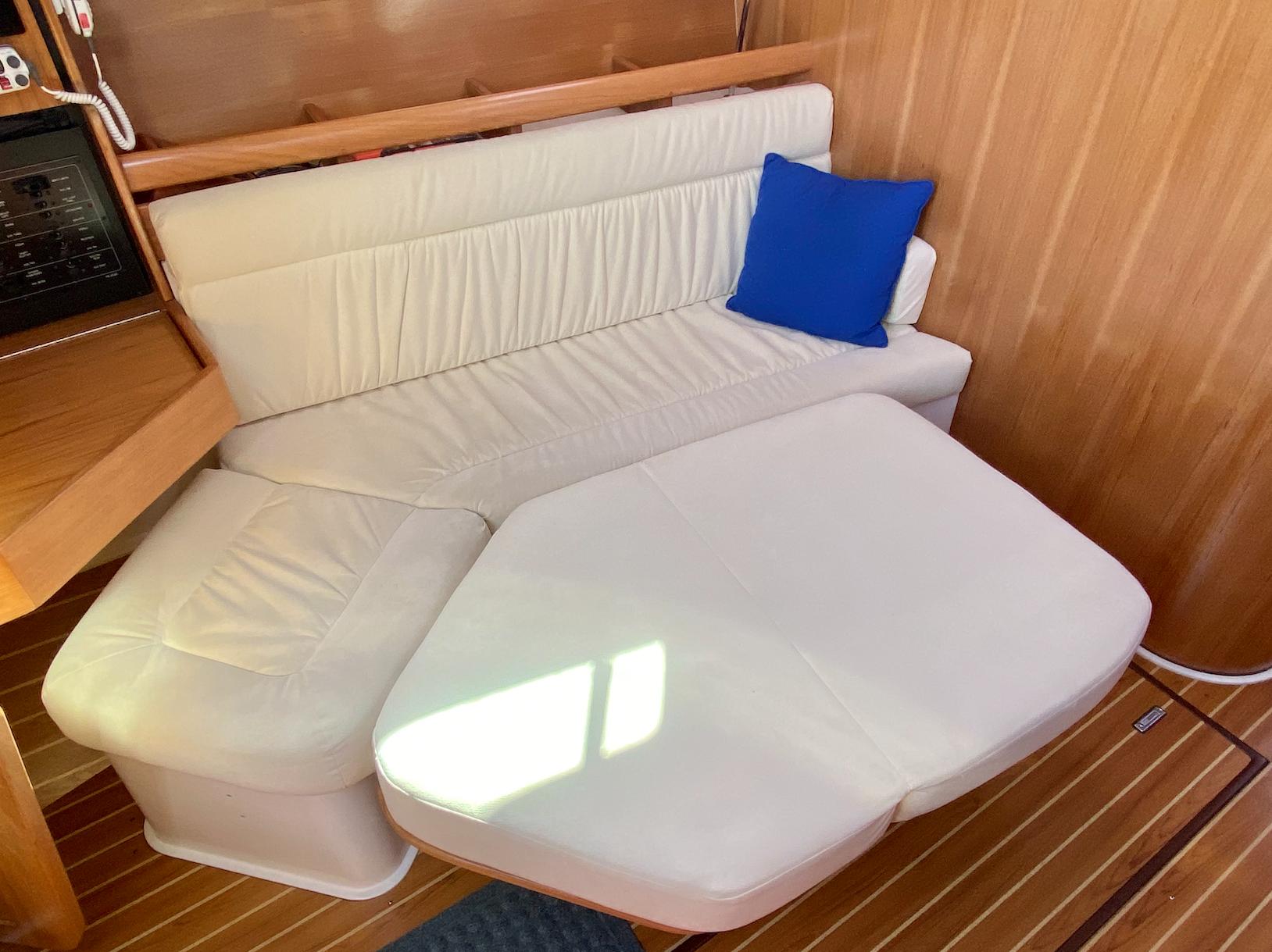

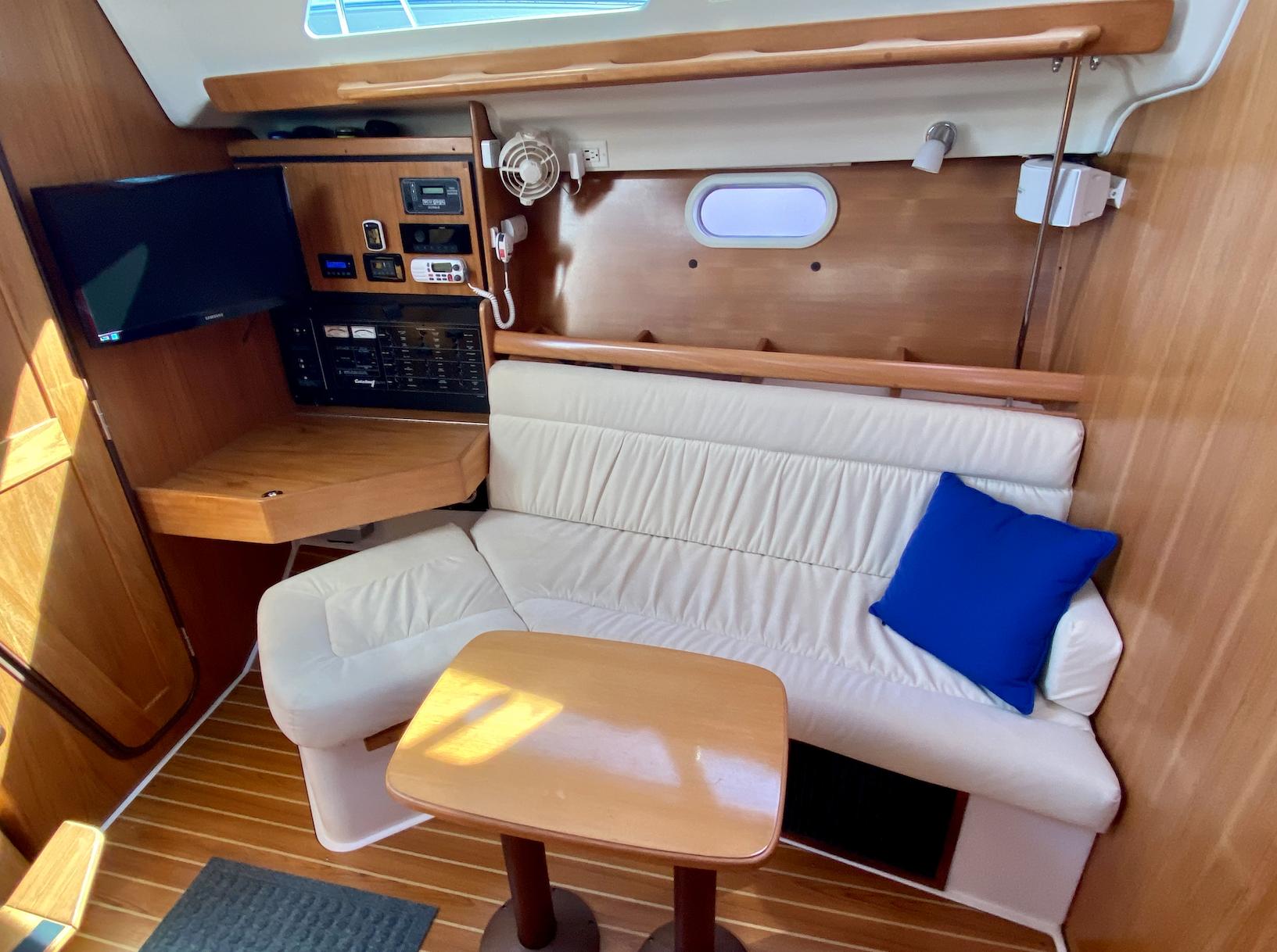

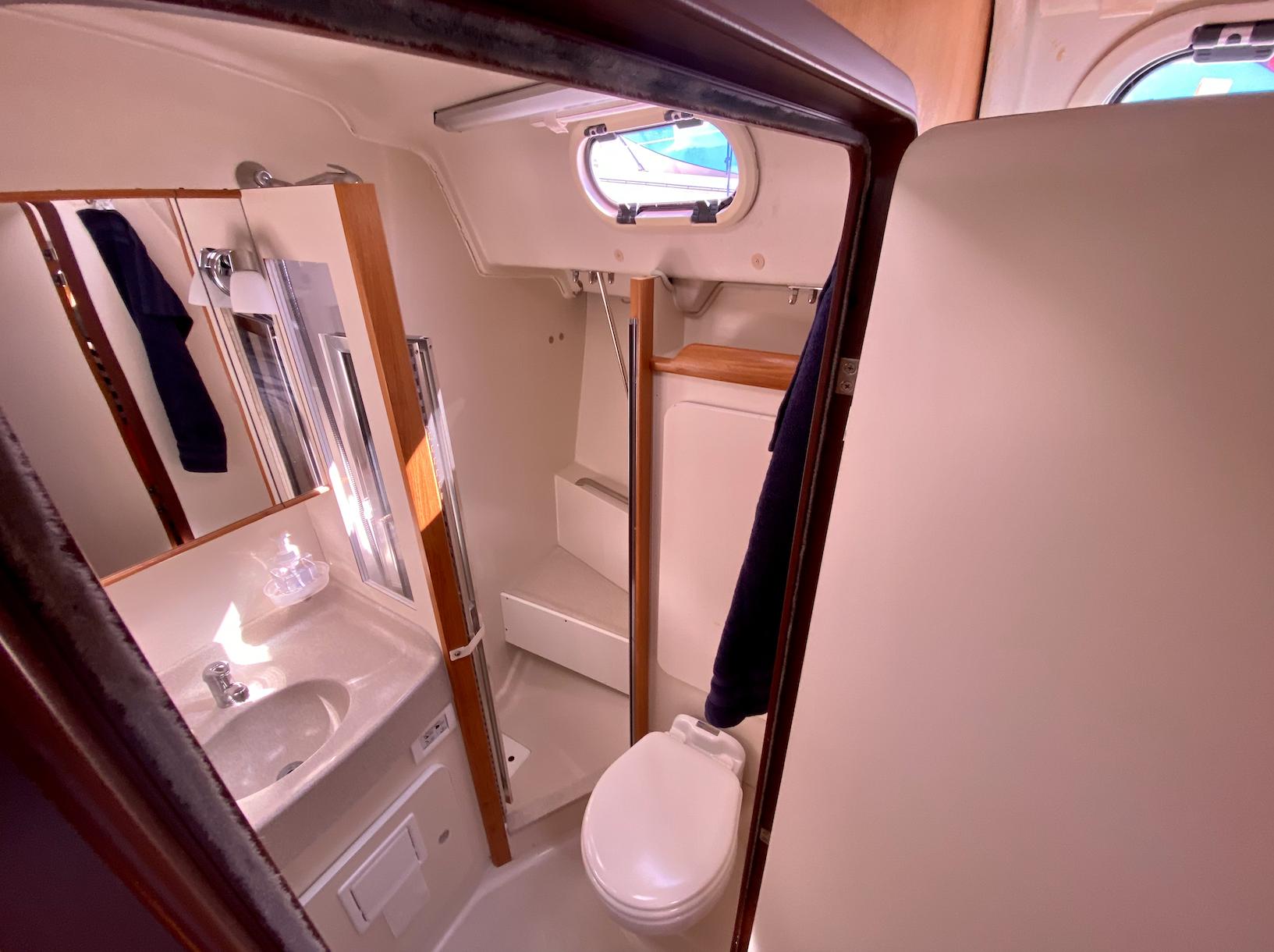

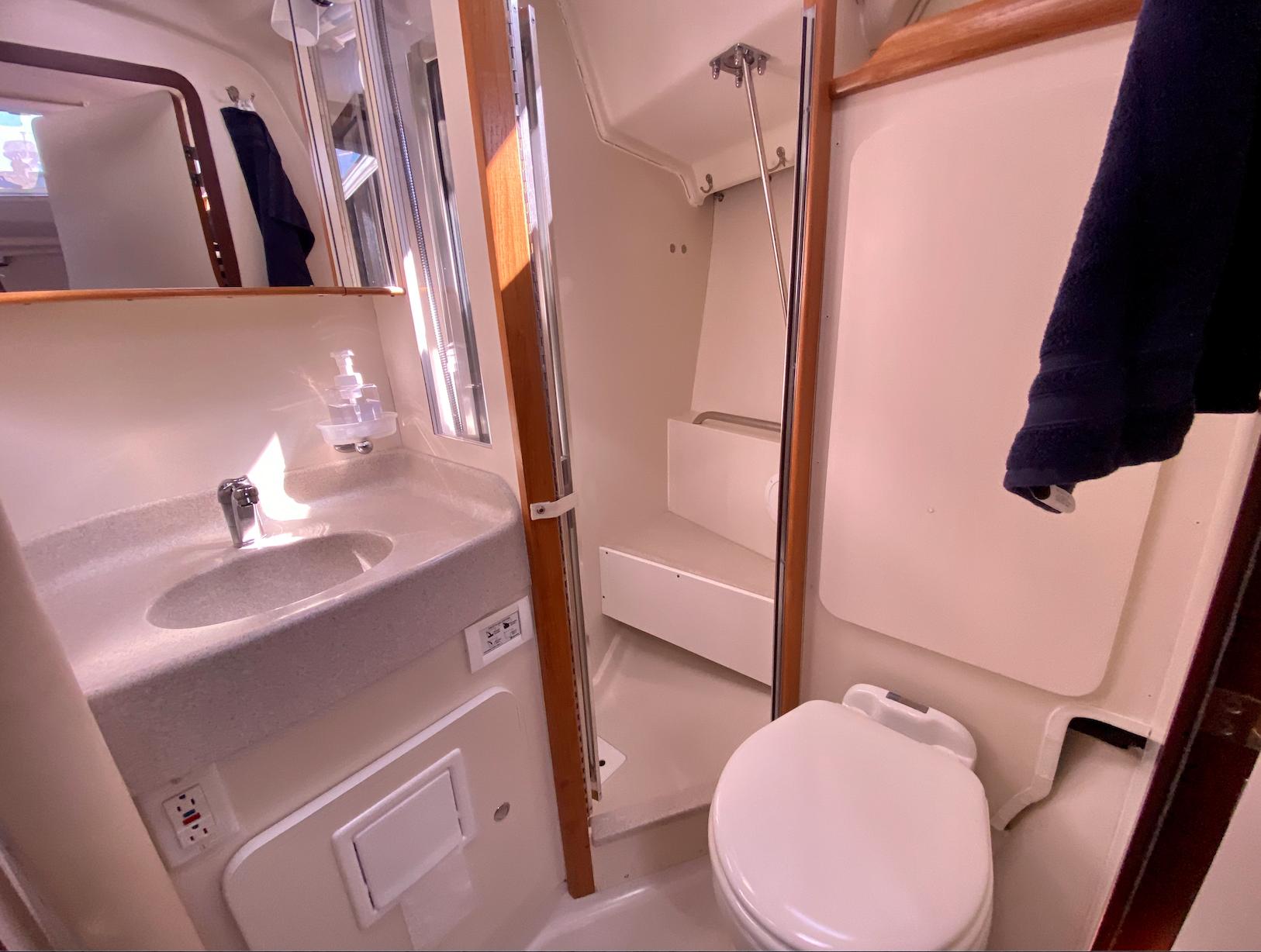

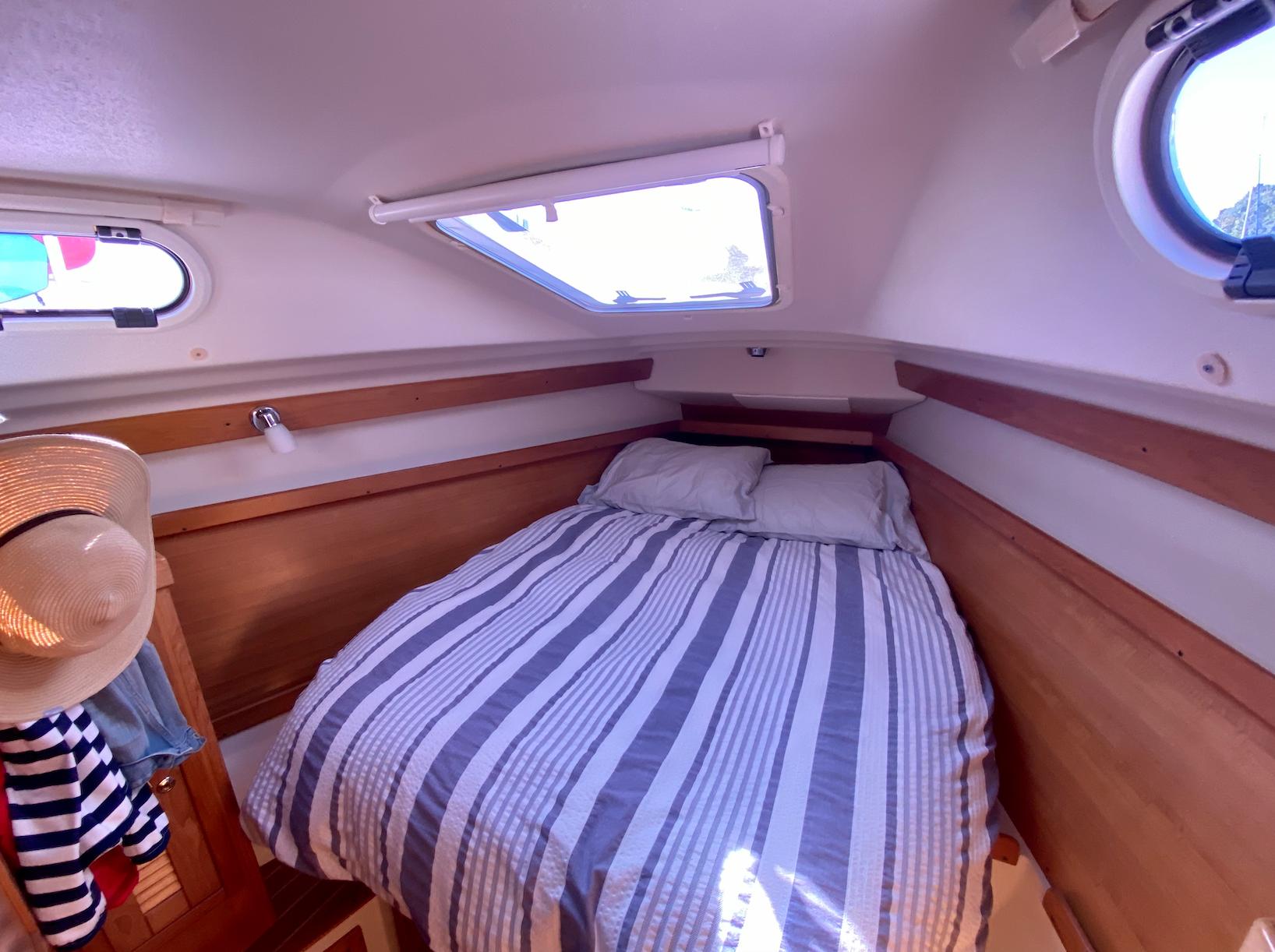

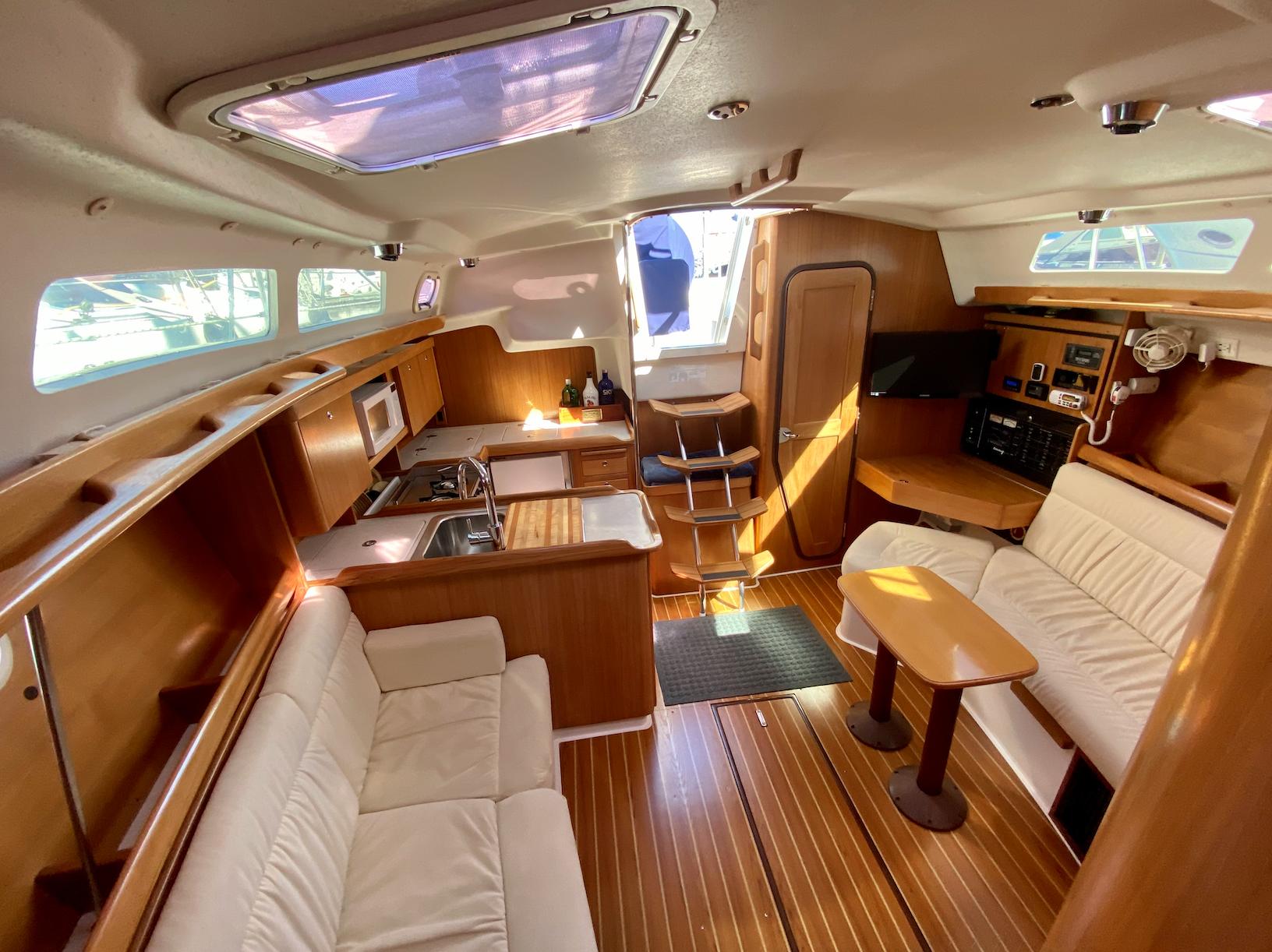

Large forward "V" style berth with outboard shelving and under berth drawer spaces make the cabin larger than any other 35 footer. A large private head shower featuring a standup separate stall shower, vanity, and sink. The head has access both from the v-berth and main salon. In the main salon, the starboard settee transforms into a twin seating with a collapsible "game table". The portside settee features a "U" shaped seating area with an additional separate moveable seat. The main table drops to form a double sleeping area. This space shares a navigation station on the aft bulkhead in the salon. A double cabin is portside aft with storage and access panels beneath. 'U" shaped galley is at the base of the companionway.

• 6'9" cabin headroom

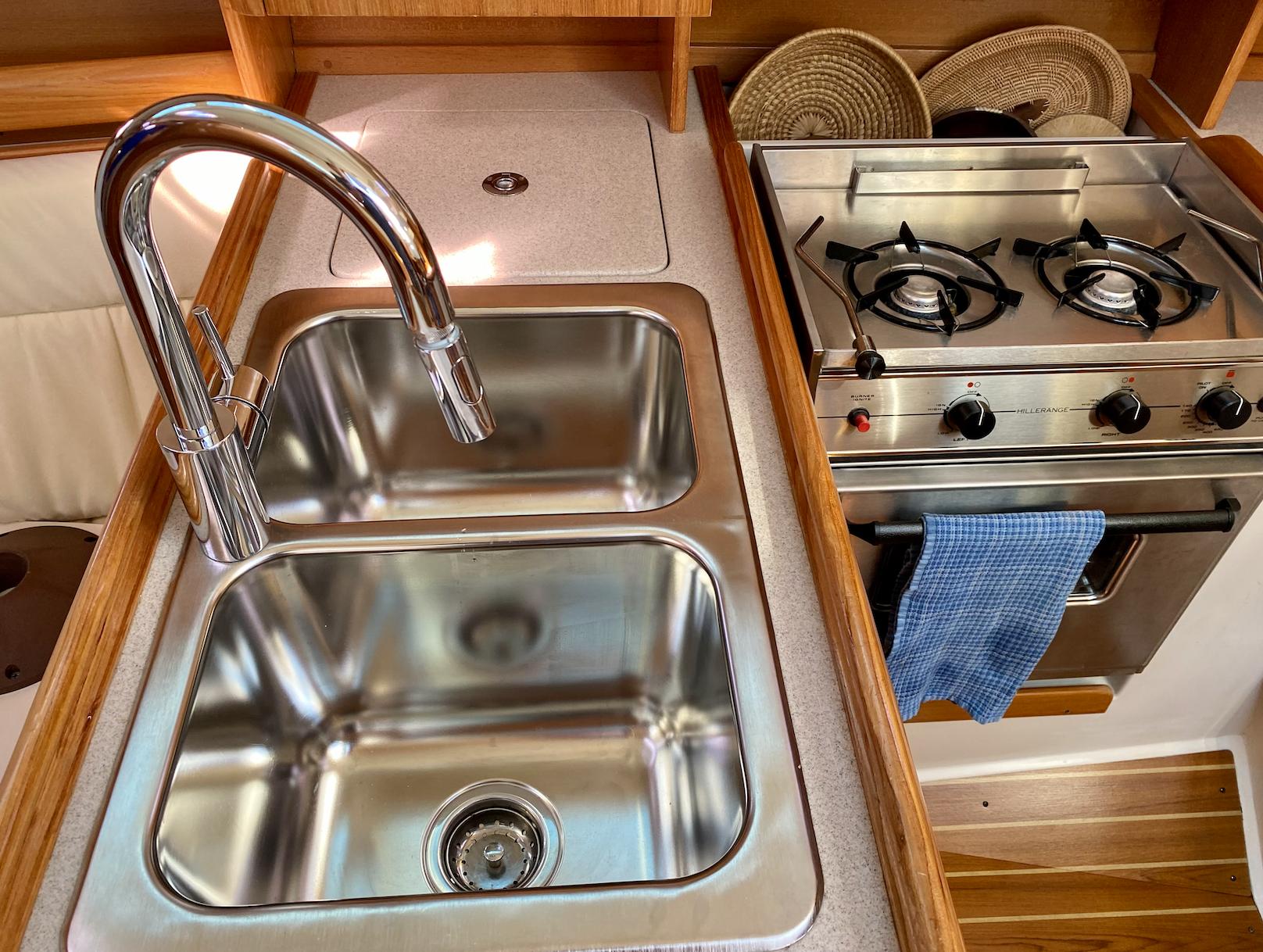

• Hillerange (2) burner gimbaled stove w/ oven (never used)
• Double stainless sinks w/ high neck faucet & pullout spray hose
• Front & top loading Alder Barbour refrigeration
• Top loading freezer
• Tan speckled Corian countertops
• Samsung microwave
• Liquor bottle storage
• White Hella cabin fans
• Cocktail table & dinette table
• Cream ultra-suede cushions

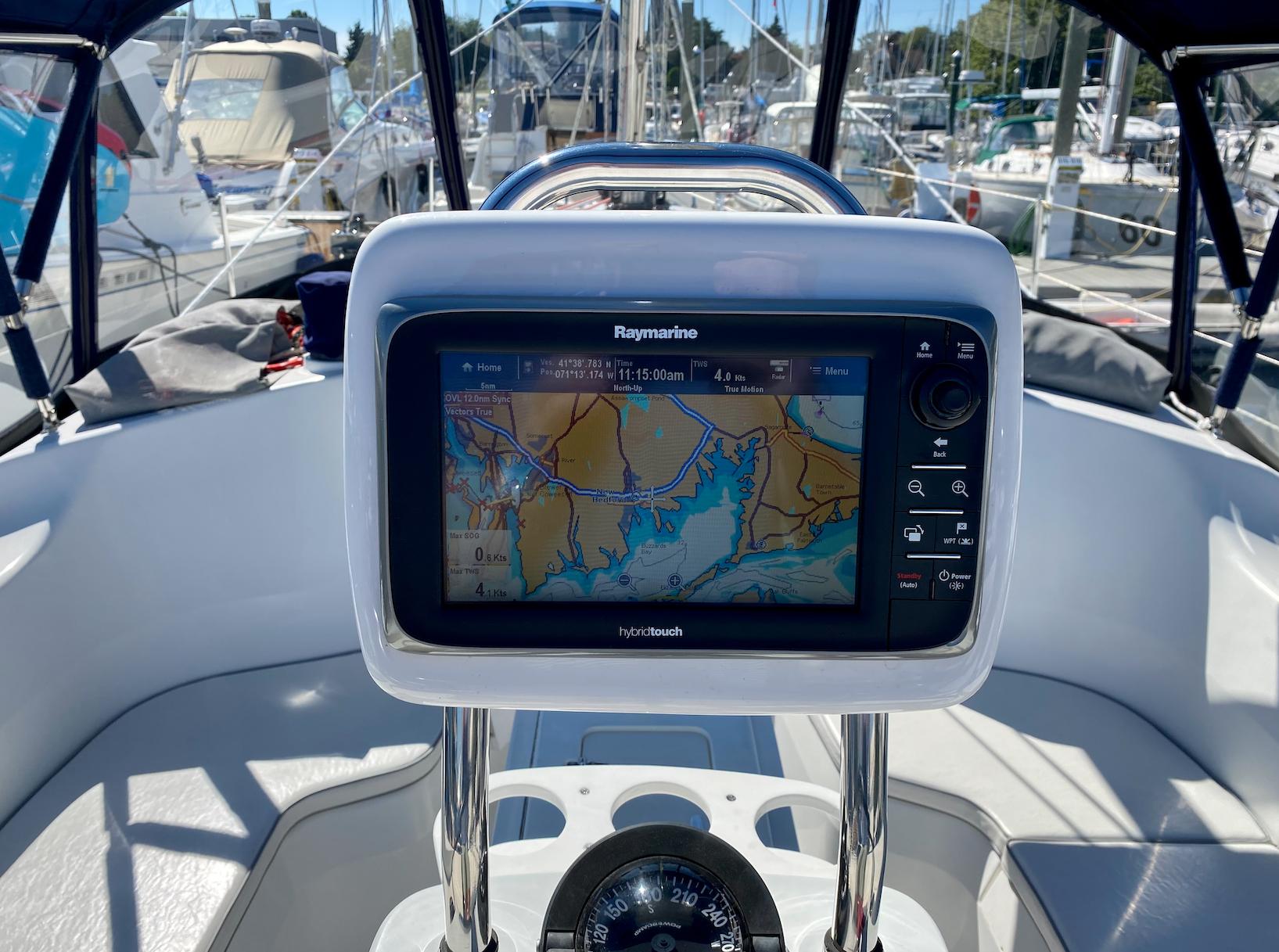

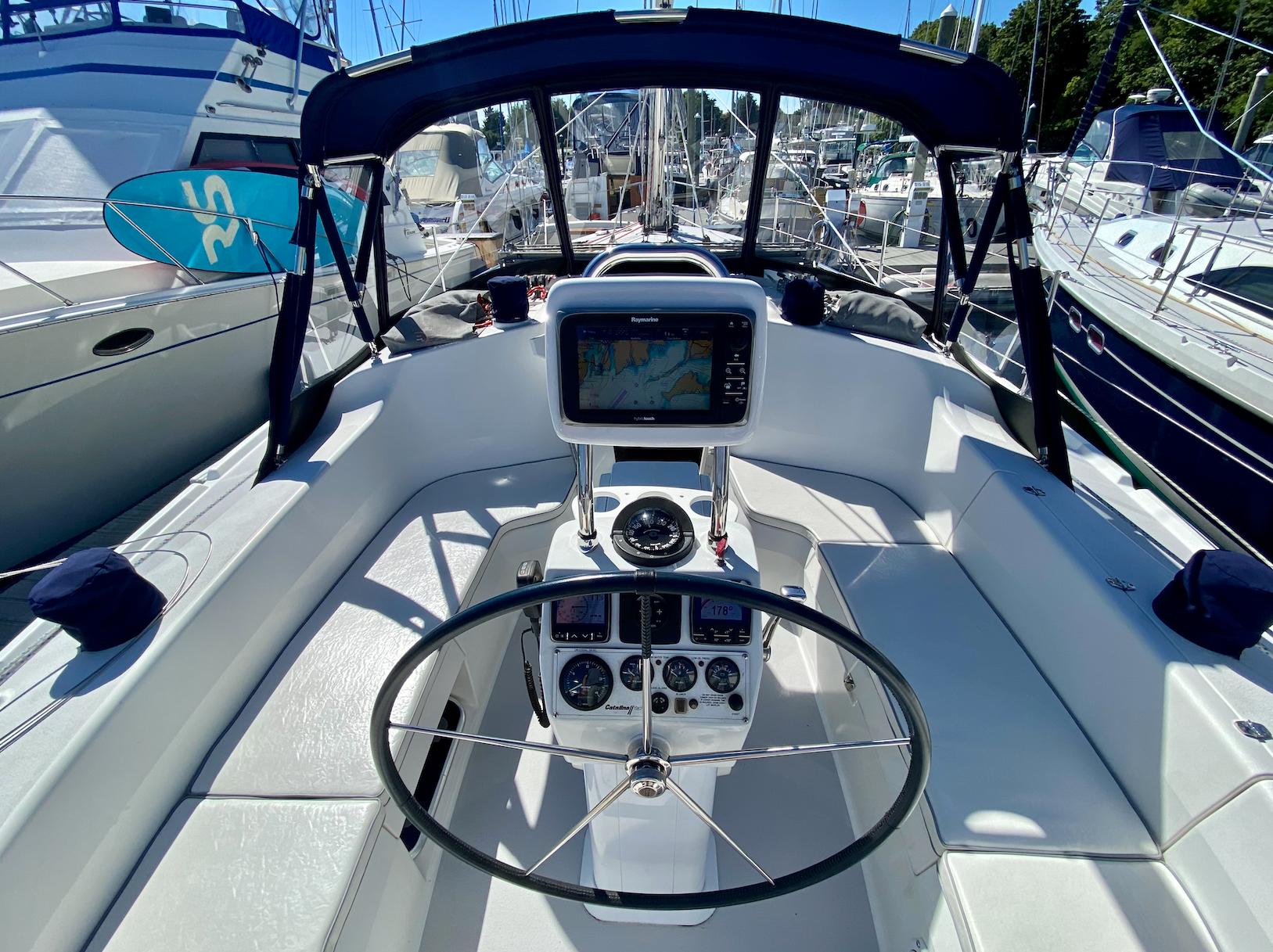

• Raymarine e95 9" Hybridtouch GPS, Chartplotter, Radar on Navpod @ the helm (water & air temperature sensors display on screen)

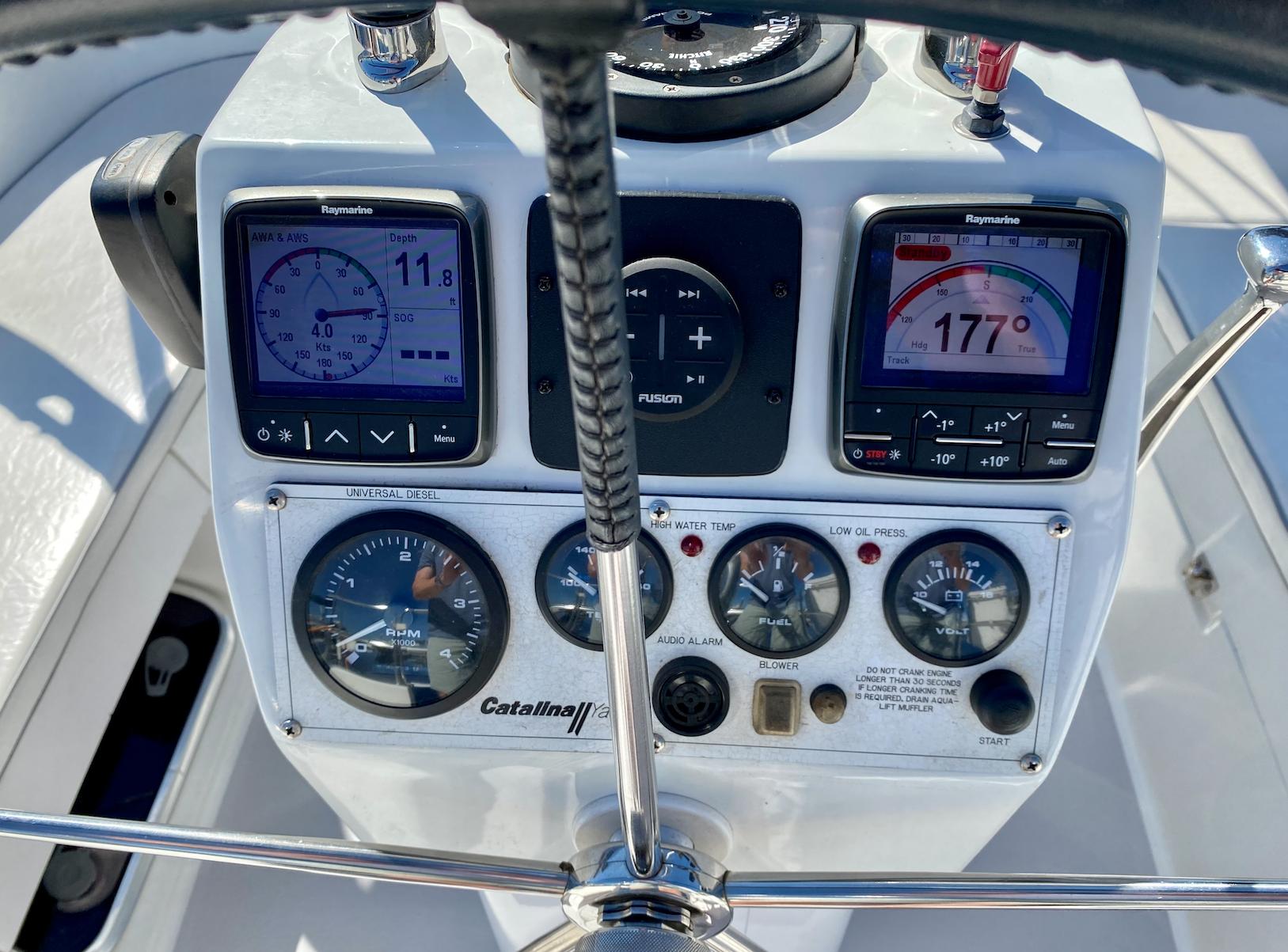

• Raymarine i70 wind, speed & direction readouts @ the helm
• Upgraded wind sensors (2017)
• Raymarine p70 autopilot control head & tier 1 autopilot system
• RD418HD 4KW HD digital radar dome on mast
• Standard Horizon VHF radio w/ DSC & cockpit mounted RAM mic
• Ritchie Powerdamp compass
• Metz 206 VHF antenna (2017)
• Powered TV antenna
• Windex
• Fusion MS-RA210 w/ bluetooth capability @ nav station
• Fusion ARX70 wired remote @ the helm
• JL Audio M500 500 watt, 3 channel, class D marine amplifier
• (2) JL Audio M770 7.7" 2-way marine enclosed speakers in the cockpit
• JL Audio M10IB5 10" marine subwoofer mounted in the lower portside cockpit coaming
• Bose 151SE speakers in main salon
• Sony Blu-ray player in the nav desk
• Samsung 24" flatscreen LED TV

• Charleston anodized aluminum double spreading mast (deck-stepped w/ compression post, Rig inspected - 2017)
• Charleston anodized aluminum boom
• All halyards & sheets replaced (2013)
• Spare halyard
• Flag halyard
• 1 x19 ss wired standing rigging w/ swaged terminals & open bodied turn-buckles
• Garhauer adjustable s/s boom vang
• Garhauer 6:1 purchase mainsheet traveler
• Garhauer mainsheet rope clutch
• Garhauer EZ-Glide genoa sheet adjustable block system
• Schaefer 2100 roller furling headstay (drum replaced - 2016)
• Winches: (2) Harken #32 ST, (2) Harken #40 ST
• Catalina Sails 150% dacron furling genoa w/ navy sunshade

• Catalina Sails dacron furling main w/ navy sunshade (sails serviced & cleaned by North Sails - 2013, 2019)

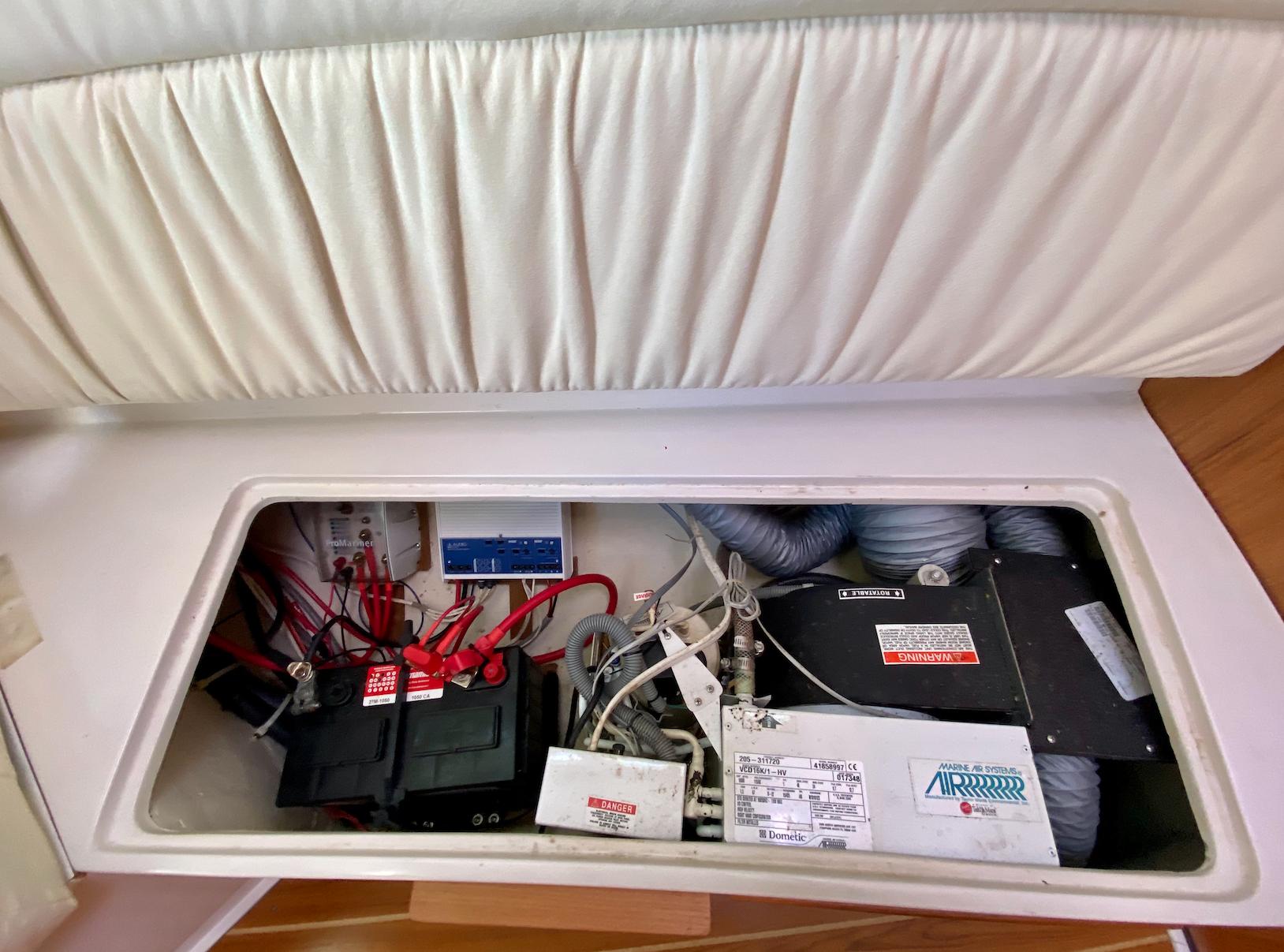

• Marine Air Systems Elite 24,000 BTU Air conditioning w/ reverse cycle heating

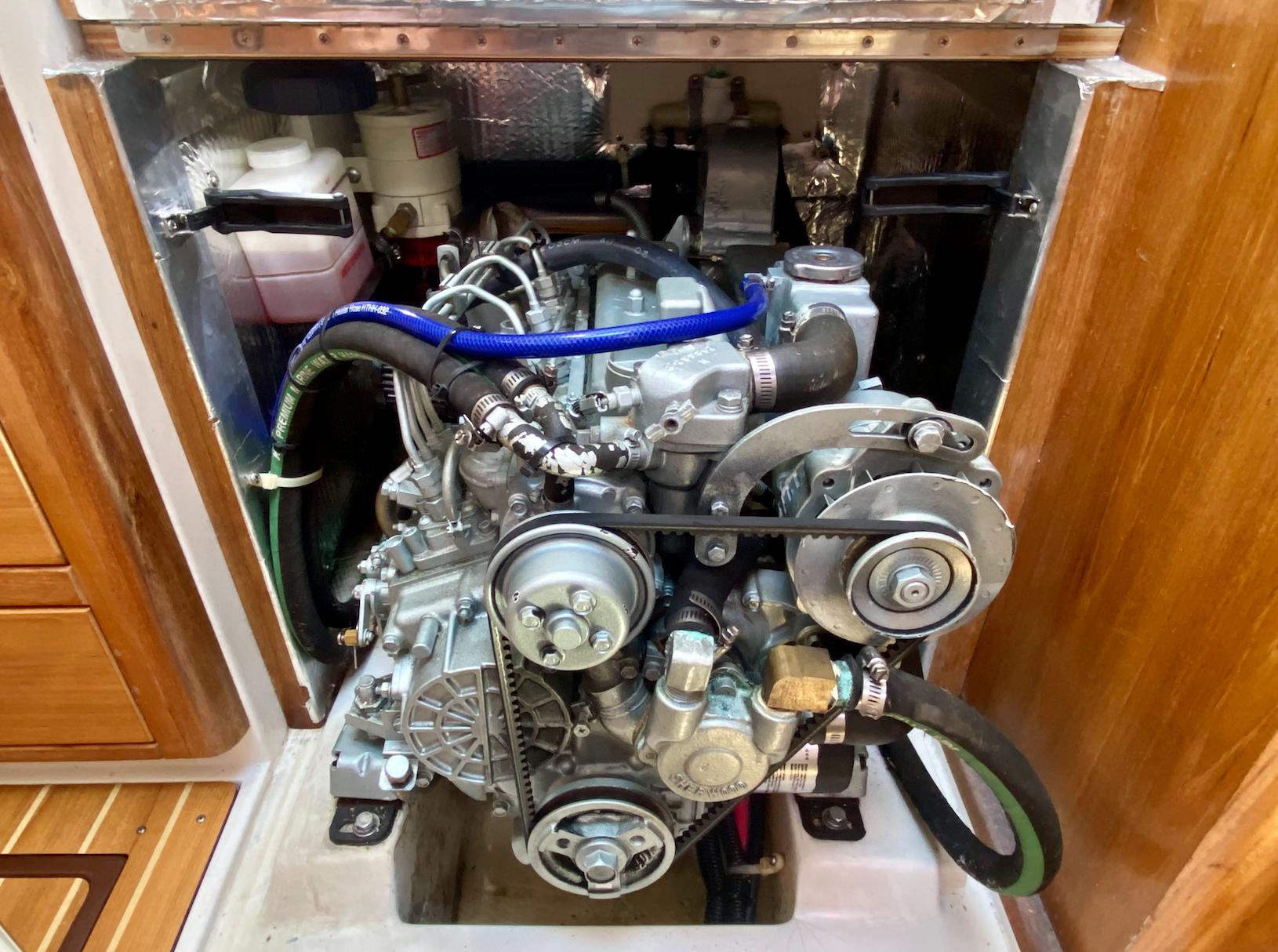

• Westerbeke M35B 35HP 4-cylinder fresh water-cooled diesel engine w/ 307 original hours (Clocked -9/2021)
• Dual Racor fuel filters
• Combination s/s throttle & clutch shifter (right-handed)
• Dripless shaft seal
• ZF 15MA 1.88-1.95:1 reduction gear
• (2) Group 4D house batteries (2020)
• Group 27 engine start battery
• Promariner Pronautic 1230P 30 amp, 3-bank smart battery charger w/ remote display
• Promariner Prolsocharge smart battery isolator (for charging from engine alternator)
• SmartPlug shore power connector, 50' ft cable & adapter
• All interior lights converted to LED
• Hella NaviLED running lights on the bow pulpit
• Sims bilge pump w/ float switch
• Seaward 11-gallon 120v hot water heater
• 15-gallon aluminum LPG bottle
• H20 out fuel tank vent w/ water vapor block
• Raritan Marine Elegance quiet flush toilet w/ smart control panel (2019)
